4N32SM - onsemi

Description: Meets or Exceeds All JEDEC Registered Specifications; Safety and Regulatory Approvals:; UL1577, 4,170 VACRMS for 1 Minute; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage"; "High Sensitivity to Low Input Drive Current

Download 4N32SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

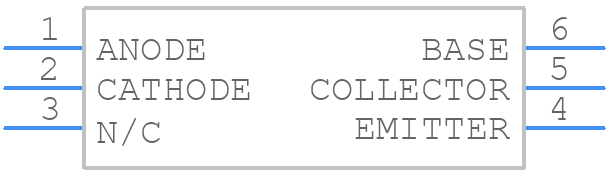

4N32SM - onsemi - PCB symbol
click to zoom
PCB Footprints
4N32SM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 4N32SM
click to zoom
3D Models
4N32SM - onsemi - 3D model - Small Outline Packages - 4N32SM
click to zoom

4N32SM Details

  • Manufacturer Part Number:

    4N32SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    SURFACE MOUNT PACKAGE-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    500%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N32SM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding this voltage may cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current for the 4N32SM is 10mA to 20mA, although the device can handle up to 50mA. Higher input currents may reduce the device's lifespan.
  • The 4N32SM is not suitable for high-frequency applications (>1MHz) due to its limited bandwidth. For high-frequency applications, consider using a faster optocoupler like the FODM8071 or the TLP2361.
  • To protect the 4N32SM from electrical noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and adding noise filters or chokes as needed.
