4N35(SHORT,F) - Toshiba

Description: Optocoupler, Transistor Output, 1 Channel, DIP, 6 Pins, 60 mA, 2.5 kV, 100 %

Download 4N35(SHORT,F) Model

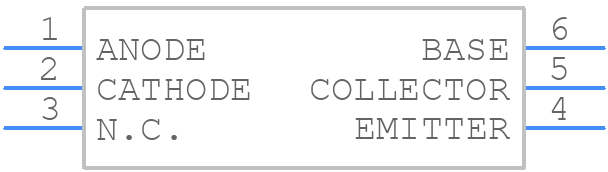

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N35(SHORT,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11−7A8
click to zoom
3D Models
4N35(SHORT,F) - Toshiba  - 3D model - Dual-In-Line Packages - 11−7A8
click to zoom

4N35(SHORT,F) Details

  • Manufacturer Part Number:

    4N35(SHORT,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    11-7A8, DIP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.3 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    NO

4N35(SHORT,F) Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it's essential to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • For optimal performance and to minimize electromagnetic interference (EMI), it's recommended to follow a compact layout with a minimum of 1.5 mm spacing between the optocoupler and other components, and to use a ground plane to shield the device.
  • While the 4N35 is suitable for many applications, it's not recommended for high-frequency applications (>10 kHz) due to its limited bandwidth and potential for signal distortion.
  • To prevent electrostatic discharge (ESD) damage, it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials, and to ensure that the device is properly grounded during assembly and testing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4N35(SHORT,F) Overview

Use the download button to access the 4N35(SHORT,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4N35(, or try a keyword search, such as Optocoupler
