4N35S-TA1 - Lite-On

Description: Lite-On, 4N35S-TA1 DC Input Transistor Output Optocoupler, Surface Mount, 6-Pin PDIP

Download 4N35S-TA1 Model

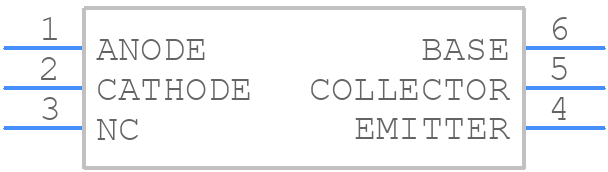

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N35S-TA1 - Lite-On PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 4N35S
click to zoom
3D Models
4N35S-TA1 - Lite-On  - 3D model - SOT23 (6-Pin) - 4N35S
click to zoom

4N35S-TA1 Details

  • Manufacturer Part Number:

    4N35S-TA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    3550 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.35 W

  • Surface Mount:

    YES

4N35S-TA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 4N35S-TA1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the 4N35S-TA1 is 70V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the input LED of the 4N35S-TA1 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical current transfer ratio (CTR) of the 4N35S-TA1 is 100%, but it can vary depending on the specific application and operating conditions.
