4N35SM - onsemi

Description: Minimum Current Transfer Ratio at IF = 10 mA, VCE = 10 V: • 10% for 4N27M and 4N28M • 20% for 4N25M and 4N26M • 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: • UL1577, 4,170 VACRMS for 1 Minute • DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download 4N35SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

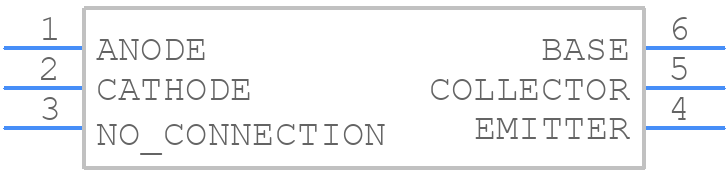

4N35SM - onsemi - PCB symbol
click to zoom
PCB Footprints
4N35SM - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 4N35SM
click to zoom
3D Models
4N35SM - onsemi - 3D model - SOT23 (6-Pin) - 4N35SM
click to zoom

4N35SM Details

  • Manufacturer Part Number:

    4N35SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N35SM Frequently Asked Questions (FAQs)

  • The 4N35SM can operate from -40°C to 100°C, but the maximum junction temperature is 125°C.
  • The 4N35SM requires a minimum of 1.4V forward voltage on the LED to ensure proper operation. A series resistor is also recommended to limit the LED current.
  • The maximum collector current rating for the output transistor is 50mA, and the maximum collector-emitter voltage is 30V.
  • The 4N35SM has a bandwidth of approximately 10kHz, making it suitable for low-to-moderate frequency applications. For high-frequency applications, consider using a faster optocoupler like the FODM807 or the TLP236L.
  • The 4N35SM has a minimum creepage distance of 5.5mm and a minimum clearance distance of 5.5mm. Ensure that the PCB layout and component placement maintain these distances to ensure proper isolation.
