4N35SR2VM - onsemi

Description: 6-Pin DIP Package Phototransistor Output Optocoupler -40°C ~ 100°C,60 mA,30V

Download 4N35SR2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

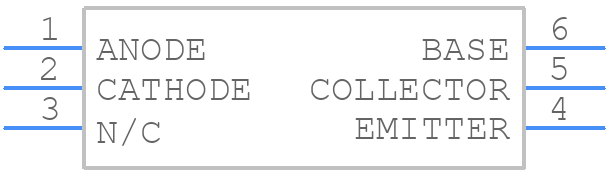

4N35SR2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
4N35SR2VM - onsemi PCB footprint - Other - Other - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE A_2025-1.5
click to zoom

4N35SR2VM Details

  • Manufacturer Part Number:

    4N35SR2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

4N35SR2VM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as specified in the datasheet. Exceeding this voltage can damage the device.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C) and that the input current is limited to the recommended maximum value to prevent overheating.
  • The recommended input current range for reliable operation is 1mA to 10mA. Operating outside this range may affect the device's performance and reliability.
  • No, the 4N35SR2VM is not designed to switch high-voltage circuits. It is intended for signal isolation and low-power applications only. Using it to switch high-voltage circuits can damage the device and compromise safety.
  • To minimize EMI, use proper PCB layout techniques, such as separating the input and output circuits, using shielding, and minimizing loop areas. Additionally, ensure that the device is properly decoupled and that the input and output circuits are properly terminated.
