4N35VM - onsemi

Description: Minimum Current Transfer Ratio at IF = 10 mA, VCE = 10 V: • 10% for 4N27M and 4N28M • 20% for 4N25M and 4N26M • 100% for 4N35M, 4N36M and 4N37M; Safety and Regulatory Approvals: • UL1577, 4,170 VACRMS for 1 Minute • DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download 4N35VM Model

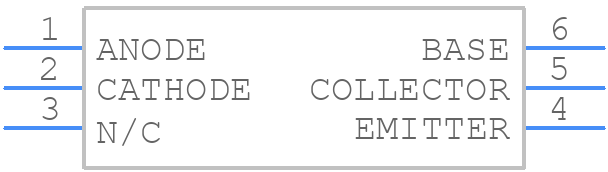

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
4N35VM - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4N35M-1
click to zoom
3D Models
4N35VM - onsemi  - 3D model - Dual-In-Line Packages - 4N35M-1
click to zoom

4N35VM Details

  • Manufacturer Part Number:

    4N35VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

4N35VM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V. Exceeding this voltage can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The recommended input current for the 4N35VM is 10mA to 20mA. Operating the device outside of this range may affect its performance and reliability.
  • The 4N35VM is not suitable for high-frequency applications due to its limited bandwidth. For high-frequency applications, consider using a different optocoupler with a higher bandwidth rating.
  • To minimize EMI when using the 4N35VM, ensure proper PCB layout, use shielding, and follow good electromagnetic compatibility (EMC) design practices.
