4SEP1200M - Panasonic

Description: Panasonic 1200μF 4 V dc Polymer Aluminium Capacitor F13, OS-CON Series 3000h 10 Dia. x 13mm

Download 4SEP1200M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4SEP1200M - Panasonic - PCB symbol
click to zoom
PCB Footprints

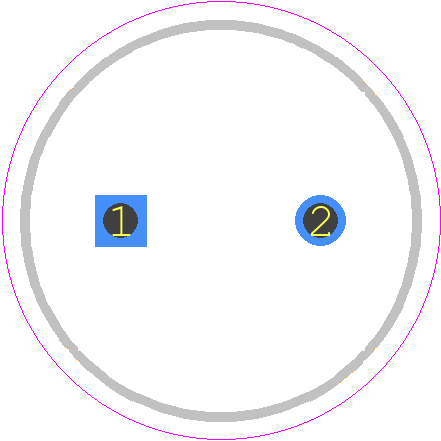

4SEP1200M - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - F13*
click to zoom
3D Models
4SEP1200M - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - F13*
click to zoom

4SEP1200M Details

  • Manufacturer Part Number:

    4SEP1200M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ-300KHZ

  • Capacitance:

    1200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    12 mΩ

  • JESD-609 Code:

    e1

  • Leakage Current:

    0.96 mA

  • Length:

    13 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    4 V

  • Ripple Current:

    272 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.18

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
