5-1393243-2 - TE Connectivity

Description: General Purpose Relays RT424F05

Download 5-1393243-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

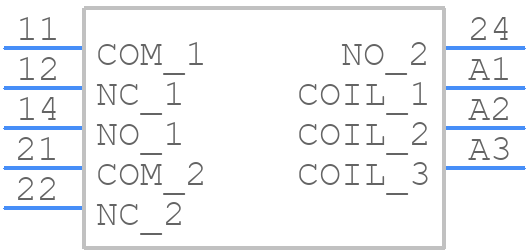

Symbol
5-1393243-2 - TE Connectivity - PCB symbol
click to zoom

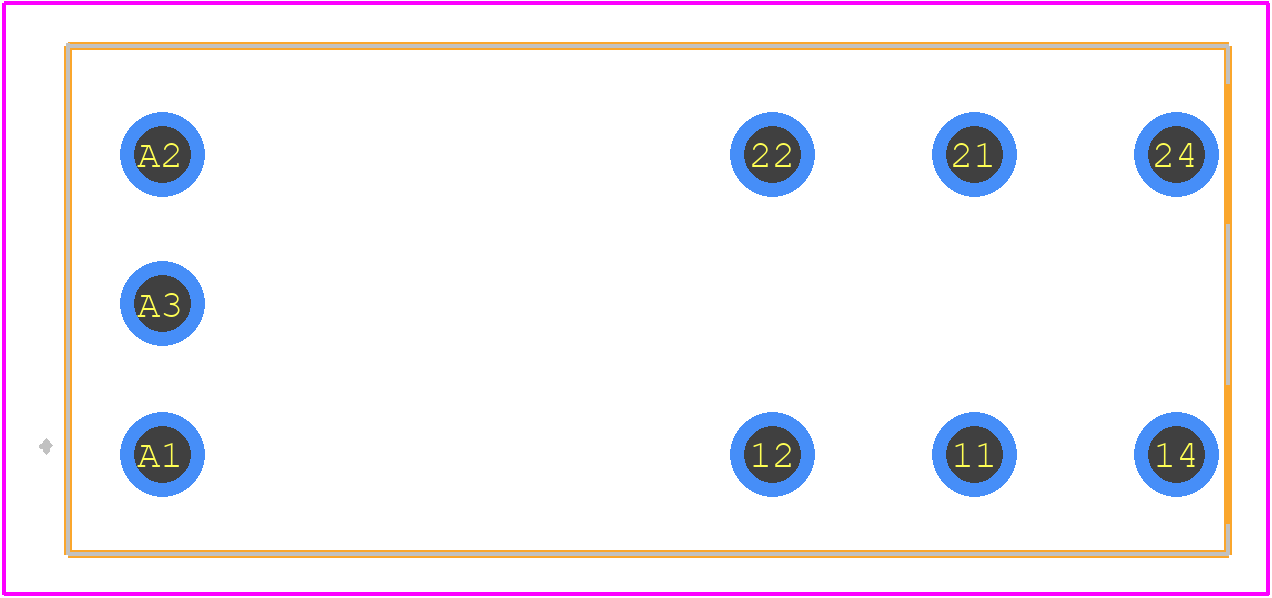

PCB Footprints
5-1393243-2 - TE Connectivity PCB footprint - Other - Other - 5-1393243-2-2
click to zoom
3D Models
5-1393243-2 - TE Connectivity - 3D model - Other - 5-1393243-2-2
click to zoom

5-1393243-2 Details

  • Manufacturer Part Number:

    5-1393243-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.8

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.12 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    595 mW

  • Coil Release Voltage(DC):

    3.5 V

  • Coil Resistance:

    42 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    LATCHED

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    13 g
