5-1734530-3 - TE Connectivity

Description: D-Sub High Density Connectors D-SUB H/D 15RECPT 30U ,REEL,W/ SCREW

Download 5-1734530-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5-1734530-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

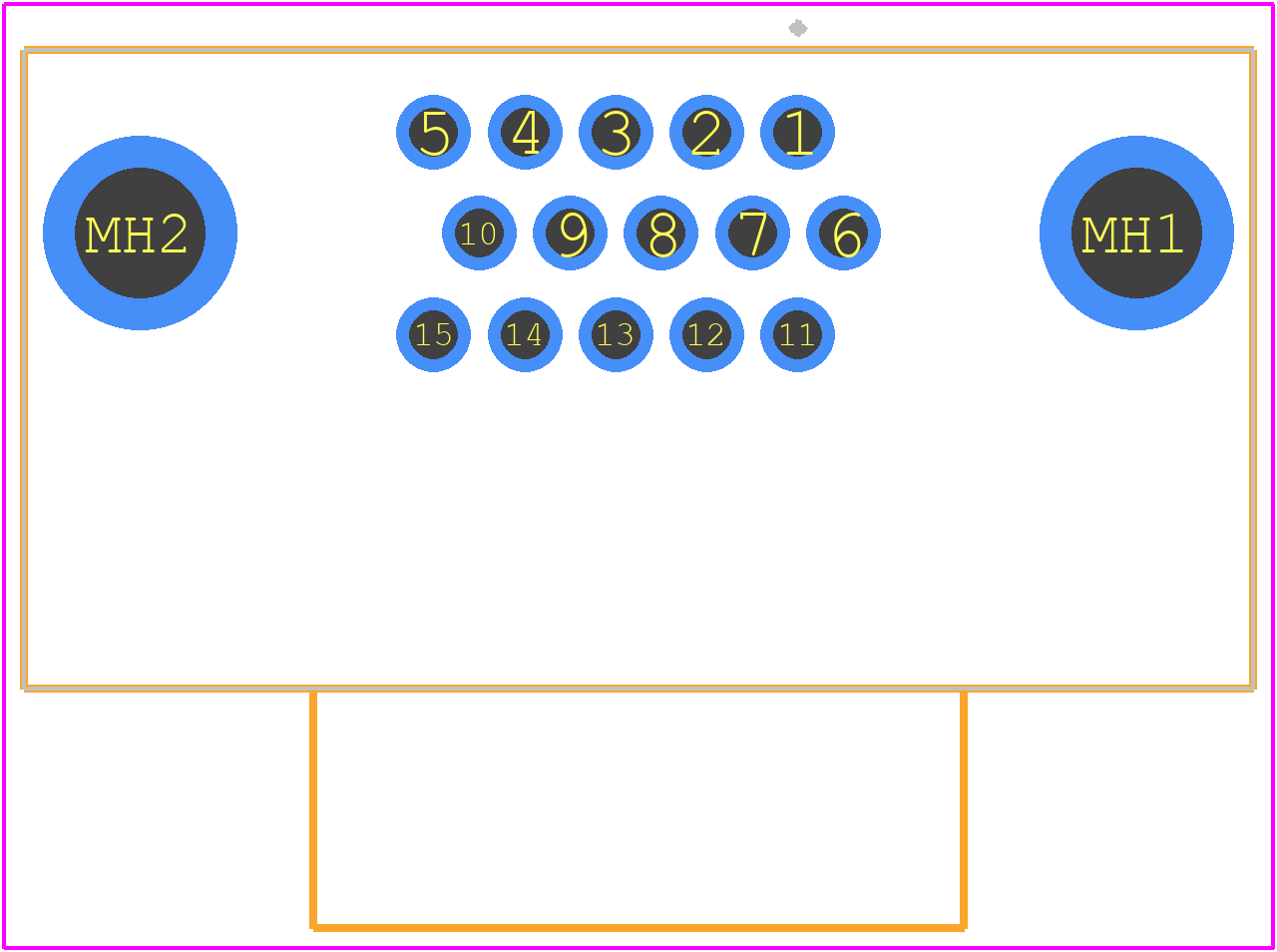

5-1734530-3 - TE Connectivity PCB footprint - Other - Other - 5-1734530-3-2
click to zoom
3D Models
5-1734530-3 - TE Connectivity - 3D model - Other - 5-1734530-3-2
click to zoom

5-1734530-3 Details

  • Manufacturer Part Number:

    5-1734530-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.63 inch

  • Body Length:

    1.213 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.09 inch

  • Mating Contact Row Spacing:

    0.078 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.286 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

5-1734530-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5-1734530-3 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is used within its specifications and to avoid any potential reliability issues.
  • The 5-1734530-3 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified temperature range.
  • The 5-1734530-3 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in an environment with high humidity or exposure to chemicals, it's recommended to consult with TE Connectivity or a qualified engineer to determine the best solution for your specific application.
