5-794627-4 - TE Connectivity

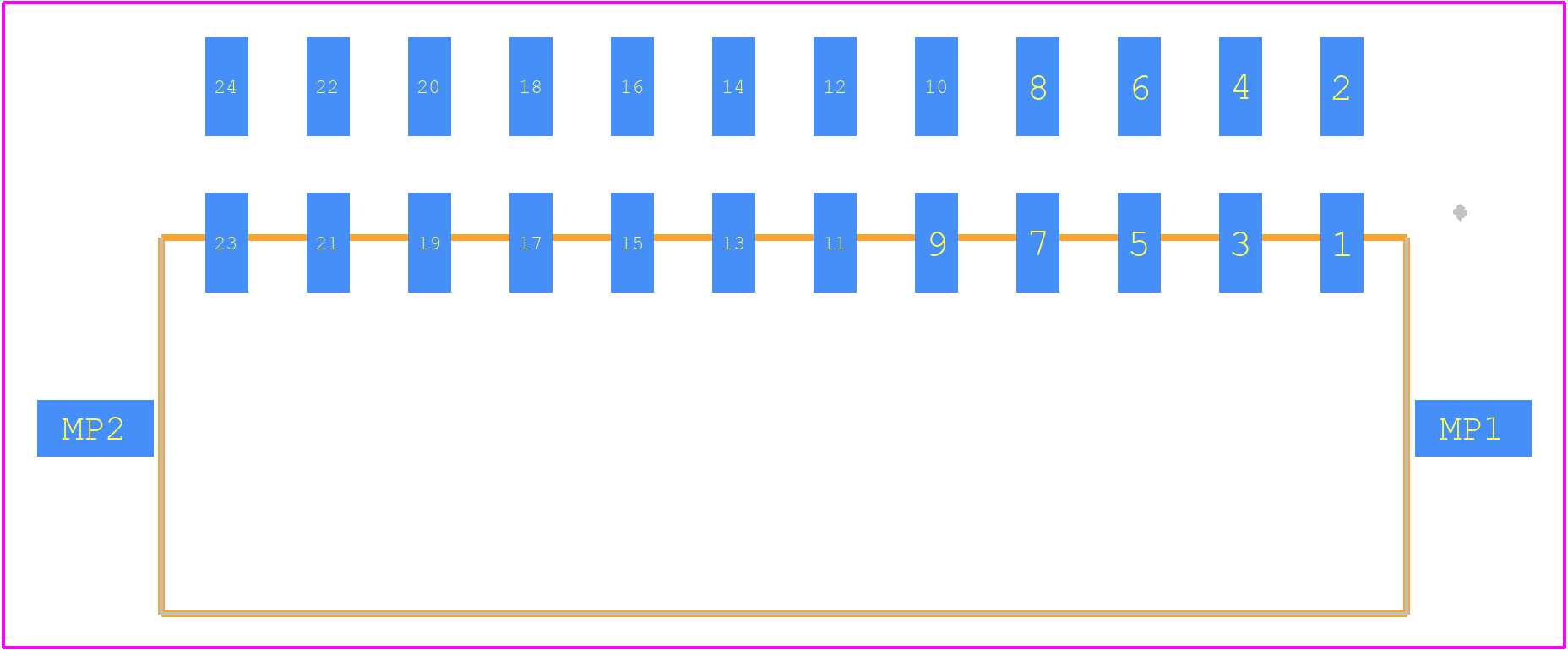

5-794627-4 Details

• Manufacturer Part Number:

  5-794627-4

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  POLARIZATION

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.29 inch

• Body Depth:

  0.319 inch

• Body Length:

  1.575 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Durability:

  30 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• MIL Conformance:

  NO

• Mains Connector Rating:

  5A

• Mating Contact Pitch:

  0.118 inch

• Mating Contact Row Spacing:

  0.181 inch

• Mating Information:

  2-794617-4

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  4.6228 mm

• Panel Mount:

  NO

• Plating Thickness:

  300u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  5 A

• Rated Voltage:

  250 V

• Reference Standard:

  UL

• Terminal Length:

  0.138 inch

• Terminal Pitch:

  3 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0

• Wire Size-Max:

  20 AWG

• Wire Size-Min:

  30 AWG

• Withdrawl Force-Min:

  .6672 N
