5-794638-4 - TE Connectivity

Description: Configuration Features: Number of Rows 2 | Number of Positions 24 | PCB Mount Orientation Vertical | Number of Power Positions 24 | Contact Features: PCB Contact Termination Area Plating Material Thickness 3.81 – 8.89 MICM | Contact Type Pin | Contact Mating Area Plating Material Thickness 30 MICIN | Multiple Contact Types Without | PCB Contact Termination Area Plating Material Tin | Contact Retention Within Housing Without | PCB Contact Termination Area Plating Material Thickness 150 – 350 MICIN | Cont

Download 5-794638-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

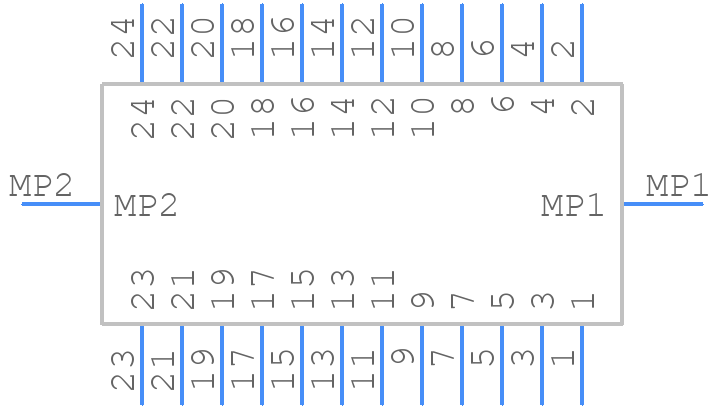

5-794638-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

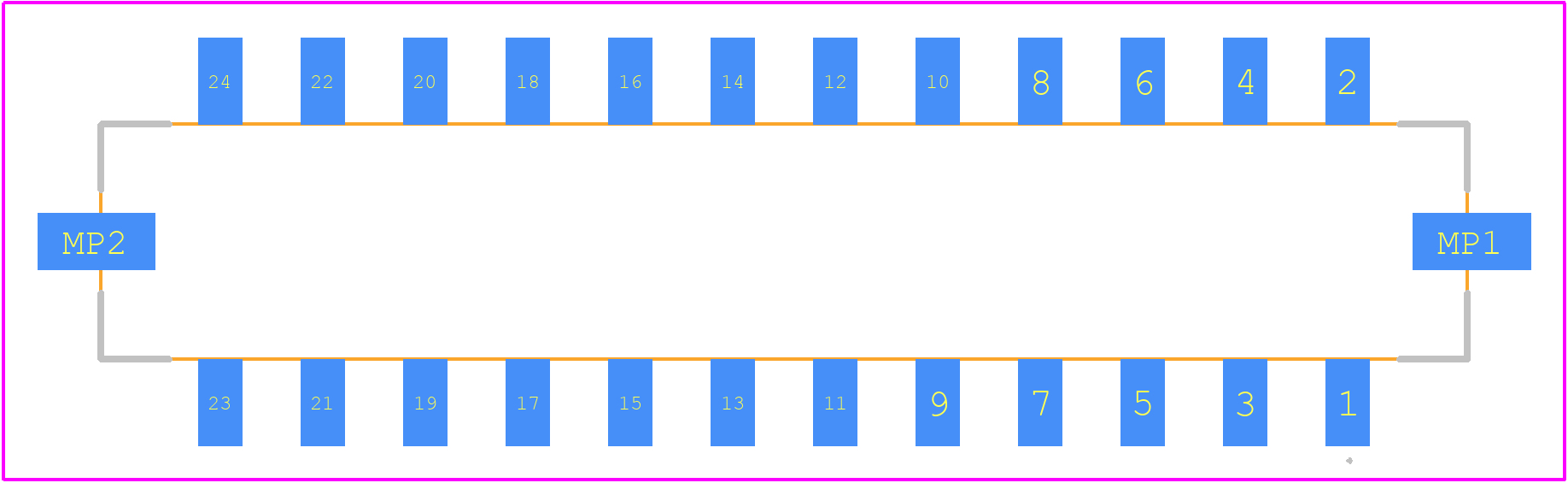

5-794638-4 - TE Connectivity PCB footprint - Other - Other - 5-794638-4-2
click to zoom
3D Models
5-794638-4 - TE Connectivity - 3D model - Other - 5-794638-4-2
click to zoom

5-794638-4 Details

  • Manufacturer Part Number:

    5-794638-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    POLARIZATION

  • Body Breadth:

    0.27 inch

  • Body Depth:

    0.364 inch

  • Body Length:

    1.574 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    150 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Pitch:

    0.118 inch

  • Mating Contact Row Spacing:

    0.118 inch

  • Mating Information:

    2-794617-4

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    9.398 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

  • Wire Size-Max:

    20 AWG

  • Wire Size-Min:

    30 AWG

  • Withdrawl Force-Min:

    .6672 N

5-794638-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the 5-794638-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw clamp and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the nut.
  • Yes, the 5-794638-4 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 5-794638-4 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and meeting IP67 and IP69K ingress protection standards.
  • The 5-794638-4 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 5-794638-4 connector is part of the TE Connectivity AMPSEAL connector family and is compatible with other AMPSEAL products, including cable assemblies and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-794638-4 Overview

Use the download button to access the 5-794638-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-794, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
