Part Image

5-826662-0 - TE Connectivity

Description: Body Features: Primary Product Color Green | Configuration Features: Board-to-Board Configuration Perpendicular | PCB Mount Orientation Right Angle | Connector Contact Load Condition Fully Loaded | Number of Positions 100 | Number of Rows 2 | Contact Features: Contact Current Rating (Max) 5 AMP | Contact Underplating Material Nickel | Contact Mating Area Plating Material Thickness 31.5 MICIN | Contact Mating Area Plating Material Thickness .8 MICM | Mating Square Post Dimension .63 MM | PCB Contact Terminat

Download 5-826662-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5-826662-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

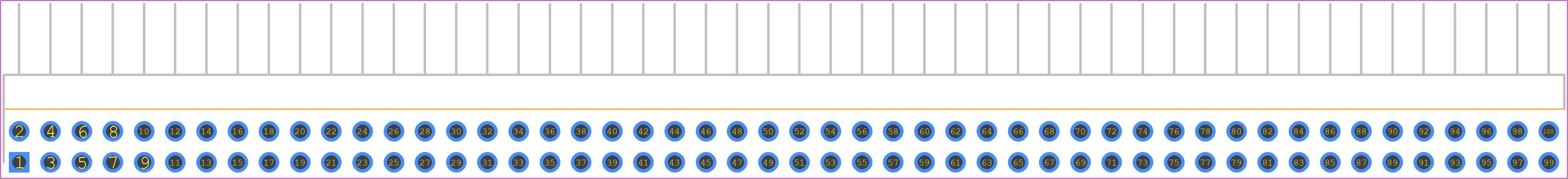

5-826662-0 - TE Connectivity PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - 5-826662-0
click to zoom
3D Models
5-826662-0 - TE Connectivity - 3D model - Header, Unshrouded - Right Angle PTH Pin - 5-826662-0
click to zoom

5-826662-0 Details

  • Manufacturer Part Number:

    5-826662-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    AMPMODU

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    GREEN

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    31.5u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    100

  • UL Flammability Code:

    94V-0

5-826662-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5-826662-0 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 5-826662-0 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 5-826662-0 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 5-826662-0 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating and performance before using the connector with other products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5-826662-0 Overview

Use the download button to access the 5-826662-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5-826, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
