5-826925-0 - TE Connectivity

Description: Body Features: Primary Product Color Green | Configuration Features: Connector Contact Load Condition Fully Loaded | Number of Positions 100 | Number of Rows 2 | PCB Mount Orientation Vertical | Board-to-Board Configuration Parallel | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Underplating Material Nickel | Contact Mating Area Plating Material Tin | Contact Shape & Form Square | Mating Square Post Dimension .025 INCH | Mating Square Post Dimension .63 MM | Contact Mating A

Download 5-826925-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5-826925-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

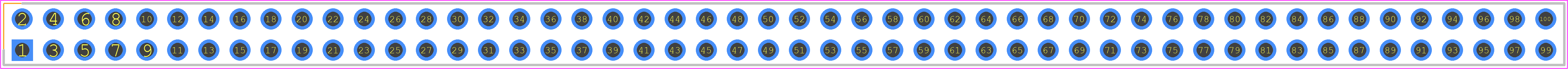

5-826925-0 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 5-826925-0(9.5)
click to zoom
3D Models
5-826925-0 - TE Connectivity - 3D model - Header, Vertical - 5-826925-0(9.5)
click to zoom

5-826925-0 Details

  • Manufacturer Part Number:

    5-826925-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    AMPMODU

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    GREEN

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    118.11u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    100

  • UL Flammability Code:

    94V-0

5-826925-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 5-826925-0 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for the most up-to-date information.
  • Yes, the 5-826925-0 connector is designed to withstand high-vibration environments. It features a ruggedized design and a secure locking mechanism to ensure reliable connections in demanding applications.
  • The 5-826925-0 connector is rated for operating temperatures ranging from -40°C to 125°C (-40°F to 257°F) and can withstand humid environments. However, it's essential to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and any necessary precautions.
  • The 5-826925-0 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 5-826925-0 connector is designed to be compatible with automated assembly processes, featuring a pick-and-place friendly design and a secure locking mechanism to ensure reliable connections.
