Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Uni-directional

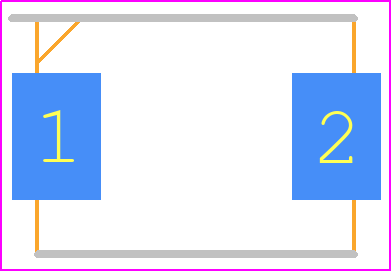

The recommended footprint and land pattern for the 5.0SMDJ13AS can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the maximum junction temperature (Tj) and storage temperature (Tstg) ratings. Additionally, proper PCB design, thermal management, and soldering techniques are crucial.
While the 5.0SMDJ13AS is rated for 5V, it can be used in non-standard voltage applications with caution. However, it is essential to consult with Littelfuse application engineers to determine the suitability of the device for the specific application, and to ensure that the device is operated within its safe operating area (SOA).
The 5.0SMDJ13AS has an ESD rating of ±30kV (human body model) and ±30kV (contact discharge), making it suitable for applications that require high ESD protection.
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power requirements of your application, as well as the desired level of protection (e.g., ESD, surge, or overvoltage). Consult the Littelfuse TVS diode selection guide or contact their application engineers for assistance.
