5.0SMDJ14A - Bourns

Description: ESD Suppressors / TVS Diodes 14V 5KW 5% UNI DO-214AB (SMC)

Download 5.0SMDJ14A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5.0SMDJ14A - Bourns - PCB symbol
click to zoom
PCB Footprints

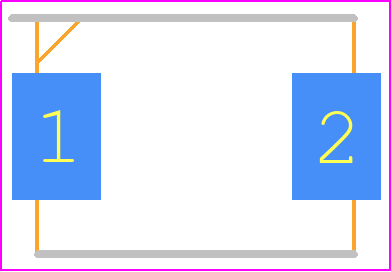

5.0SMDJ14A - Bourns PCB footprint - Diodes Moulded - Diodes Moulded - 5.0SMDJ14A-1
click to zoom
3D Models
5.0SMDJ14A - Bourns - 3D model - Diodes Moulded - 5.0SMDJ14A-1
click to zoom

5.0SMDJ14A Details

  • Manufacturer Part Number:

    5.0SMDJ14A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.56

  • Additional Feature:

    PRSM-MIN

  • Breakdown Voltage-Max:

    17.2 V

  • Breakdown Voltage-Min:

    15.6 V

  • Breakdown Voltage-Nom:

    16.4 V

  • Clamping Voltage-Max:

    23.2 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    5000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Rep Pk Reverse Voltage-Max:

    14 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

5.0SMDJ14A Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 5.0SMDJ14A can be found in the Bourns application note AN164, which provides guidelines for PCB layout and assembly.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermally conductive pad or heat sink to dissipate heat away from the device.
  • Yes, the 5.0SMDJ14A is AEC-Q101 qualified, which means it meets the stringent requirements for reliability and performance in automotive applications.
  • To select the correct TVS diode, consider the following factors: voltage rating, peak pulse current, and clamping voltage. The 5.0SMDJ14A has a voltage rating of 5V, a peak pulse current of 14A, and a clamping voltage of 7.4V.
  • The lead time and availability of the 5.0SMDJ14A may vary depending on the region and distributor. It is recommended to check with authorized distributors or the Bourns website for the latest information on lead time and availability.
