5.0SMDJ28AS - LITTELFUSE

Description: The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Uni-directional

Download 5.0SMDJ28AS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5.0SMDJ28AS - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

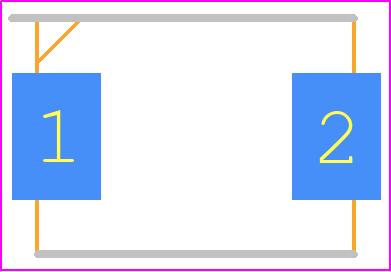

5.0SMDJ28AS - LITTELFUSE PCB footprint - Diodes Moulded - Diodes Moulded - DO-214AB (SMC J-Bend
click to zoom
3D Models
5.0SMDJ28AS - LITTELFUSE - 3D model - Diodes Moulded - DO-214AB (SMC J-Bend
click to zoom

5.0SMDJ28AS Details

  • Manufacturer Part Number:

    5.0SMDJ28AS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY

  • Breakdown Voltage-Max:

    34.4 V

  • Breakdown Voltage-Min:

    31.1 V

  • Breakdown Voltage-Nom:

    32.75 V

  • Clamping Voltage-Max:

    45.4 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    3.5 V

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    5000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Reference Standard:

    IEC-61000-4-2, 4-4; UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    28 V

  • Reverse Current-Max:

    2 µA

  • Reverse Test Voltage:

    28 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

5.0SMDJ28AS Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 5.0SMDJ28AS can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
  • To ensure proper soldering and avoid solder bridging, follow the recommended soldering profile and use a solder paste with a suitable flux type. Also, use a solder stencil with a aperture size that matches the pad size of the 5.0SMDJ28AS.
  • Yes, the 5.0SMDJ28AS is qualified to AEC-Q101 and is suitable for use in high-reliability and automotive applications. However, it's recommended to consult with Littelfuse's application engineers to ensure the device meets the specific requirements of your application.
  • The 5.0SMDJ28AS is rated for operation up to 150°C, but its performance may degrade at high temperatures. Consult the datasheet for derating information and consider using a thermal management strategy to keep the device within its recommended operating temperature range.
  • Yes, the 5.0SMDJ28AS can be used in a parallel configuration to increase the power rating, but it's essential to ensure that the devices are properly matched and that the layout is designed to minimize inductance and resistance. Consult with Littelfuse's application engineers for guidance on parallel configuration.
