Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Bi-directional
The recommended footprint and land pattern for the 5.0SMDJ40CAS can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
To ensure reliability in high-temperature applications, it is recommended to follow the derating curves provided in the datasheet, and to consider the maximum junction temperature (Tj) and storage temperature (Tstg) ratings. Additionally, proper PCB design, thermal management, and soldering techniques are crucial.
While the 5.0SMDJ40CAS is rated for 5V, it can be used in non-standard voltage applications with caution. However, it is essential to consult with Littelfuse application engineers to determine the suitability of the device for the specific application, and to ensure that the device is operated within its safe operating area (SOA).
The 5.0SMDJ40CAS has an ESD rating of ±30kV per the IEC 61000-4-2 standard, which provides protection against electrostatic discharge events.
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power requirements of your application, as well as the desired level of protection and clamping voltage. Littelfuse provides a TVS Diode Selection Guide that can help with this process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5.0SMDJ40CAS Overview

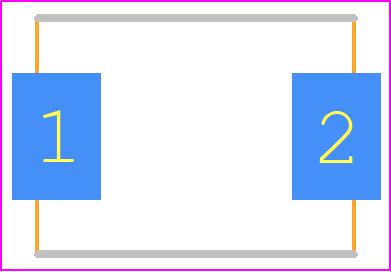

Use the download button to access the 5.0SMDJ40CAS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM,
or try a keyword search, such as Transient Suppressors
