- Part Number 5.0SMDJ54CA-QH
- Manufacturer Bourns
- Pin Count 2
- Part Category TVS Diode (Bi-directional)
- Package Category Diodes Moulded Non Polarised

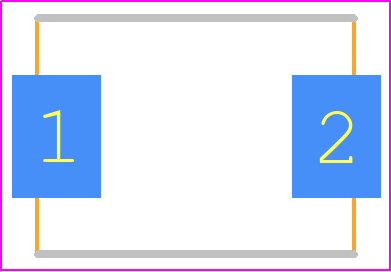

- Footprint Name Diodes Moulded Non Polarised - DO-214AB
- Released Date Nov 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
5.0SMDJ54CA-QH Details
-
Manufacturer Part Number:
5.0SMDJ54CA-QH
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Bourns Inc
-
YTEOL:
7.59
-
Breakdown Voltage-Max:
66.3 V
-
Breakdown Voltage-Min:
60 V
-
Breakdown Voltage-Nom:
63.15 V
-
Clamping Voltage-Max:
87.1 V
5.0SMDJ54CA-QH Frequently Asked Questions (FAQs)
-
The recommended footprint and land pattern for the 5.0SMDJ54CA-QH can be found in the Bourns application note AN3041, which provides guidelines for surface mount assembly of Bourns SMD devices.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider the device's thermal resistance, power dissipation, and operating temperature range. Additionally, it is recommended to perform thermal analysis and testing to validate the device's performance in the specific application.
-
Yes, the 5.0SMDJ54CA-QH is AEC-Q101 qualified, which means it meets the requirements for automotive applications. However, it is recommended to consult with Bourns' application engineers to ensure the device meets the specific requirements of the application and to discuss any necessary testing and validation.
-
To prevent damage during assembly, it is recommended to follow standard handling and assembly procedures for SMD devices, including using anti-static wrist straps, mats, and packaging, and avoiding excessive bending or flexing of the leads.
-
The recommended soldering profile for the 5.0SMDJ54CA-QH can be found in the Bourns application note AN3041, which provides guidelines for surface mount assembly of Bourns SMD devices. The profile should be set to avoid exceeding the maximum soldering temperature of 260°C.
Trust Checks
System Verified
5.0SMDJ54CA-QH Overview
Use the download button to access the 5.0SMDJ54CA-QH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5.0SM,
or try a keyword search, such as Transient Suppressors
