Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Bi-directional

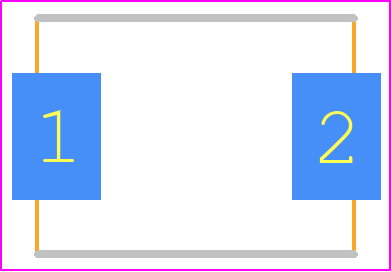

The recommended land pattern for 5.0SMDJ7.0CAS is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask clearance of 0.2mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
Yes, 5.0SMDJ7.0CAS is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated for the specific operating conditions to prevent thermal runaway.
To prevent damage, handle 5.0SMDJ7.0CAS by the body only, avoiding touching the leads or the glass diode. Use an anti-static wrist strap or mat, and ensure the assembly area is free from static electricity. Avoid bending or flexing the leads during assembly.
The typical lead time for 5.0SMDJ7.0CAS varies depending on the supplier and the quantity required. However, it's usually around 4-6 weeks for standard orders. It's recommended to check with the supplier or distributor for the most up-to-date lead time information.
Yes, 5.0SMDJ7.0CAS is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and halogen-free materials.
