Description:The 5.0SMDJxxS series, single chip design is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, Bi-directional

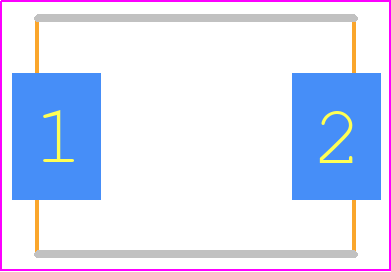

The recommended land pattern for 5.0SMDJ7.5CAS is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask clearance of 0.2mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
While 5.0SMDJ7.5CAS has a high-temperature rating of 150°C, it's essential to consider the derating curve and ensure that the component does not exceed its maximum junction temperature (Tj) of 150°C. Additionally, the component's reliability and lifespan may be affected by prolonged exposure to high temperatures.
To prevent damage during assembly, handle the 5.0SMDJ7.5CAS by the body only, avoiding touching the leads or the glass diode. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Also, ensure that the component is not subjected to excessive mechanical stress, such as bending or flexing.
While 5.0SMDJ7.5CAS is a surface-mount device, it's designed to withstand moderate vibration levels. However, in high-vibration environments, it's essential to ensure that the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent component detachment or damage.
The typical lead time for 5.0SMDJ7.5CAS can vary depending on the supplier, quantity, and availability. However, as a general guideline, the lead time is usually around 4-6 weeks for standard quantities. It's recommended to check with the supplier or distributor for the most up-to-date lead time information.
