500MXG150MEFCSN22X55 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Download 500MXG150MEFCSN22X55 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
500MXG150MEFCSN22X55 - Rubycon - PCB symbol
click to zoom
PCB Footprints

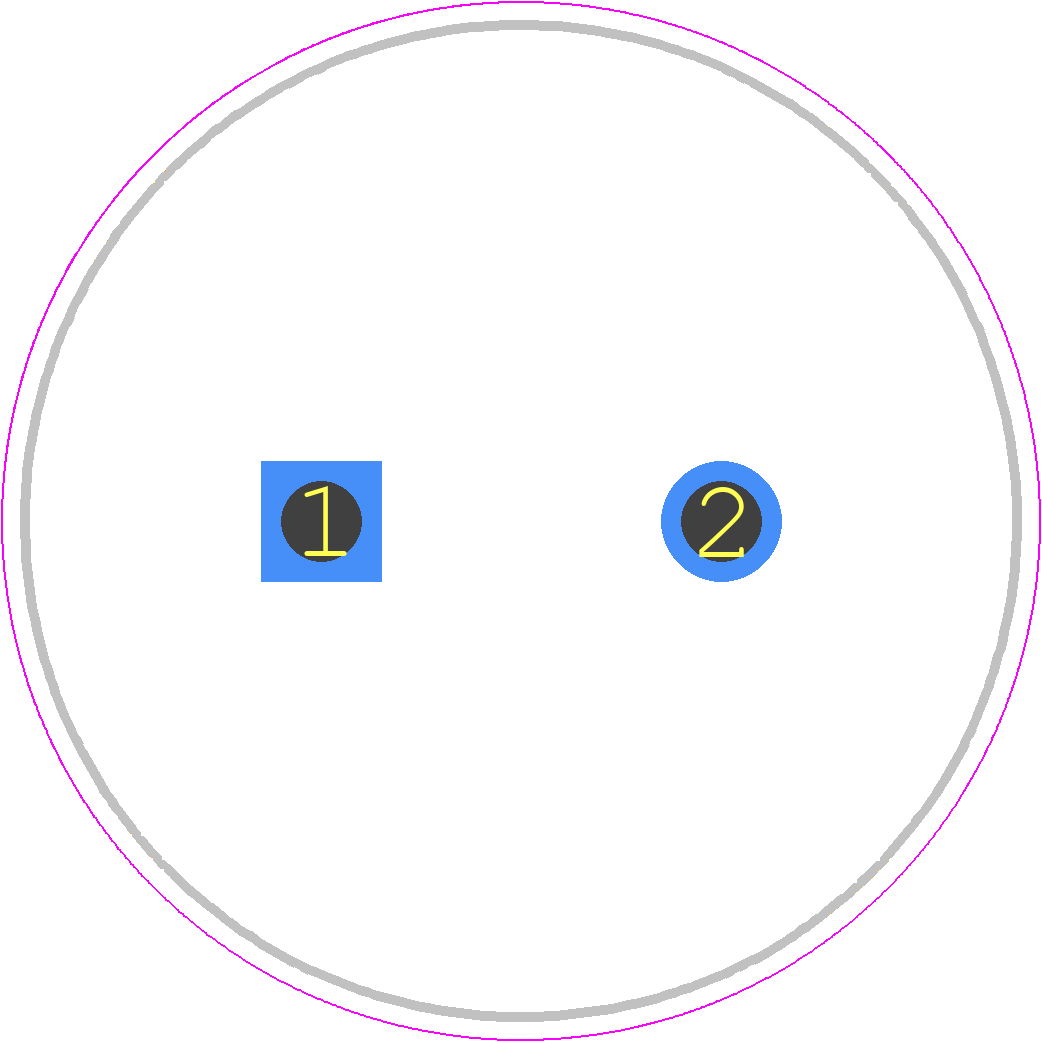

500MXG150MEFCSN22X55 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*55
click to zoom
3D Models
500MXG150MEFCSN22X55 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25*55
click to zoom

500MXG150MEFCSN22X55 Details

  • Manufacturer Part Number:

    500MXG150MEFCSN22X55

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.82158 mA

  • Length:

    55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    1240 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

500MXG150MEFCSN22X55 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 500MXG150MEFCSN22X55 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 500MXG150MEFCSN22X55 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of the 500MXG150MEFCSN22X55 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • The 500MXG150MEFCSN22X55 is designed to withstand moderate vibration, but it's essential to consult Rubycon's vibration test standards and ensure the capacitor is properly mounted and secured to prevent damage.
  • Yes, the 500MXG150MEFCSN22X55 is designed for high-reliability applications, with a long lifespan and low failure rate. However, it's crucial to follow proper design, testing, and manufacturing guidelines to ensure the capacitor meets the required reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

500MXG150MEFCSN22X55 Overview

Use the download button to access the 500MXG150MEFCSN22X55 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 500MX, or try a keyword search, such as Aluminum Electrolytic Capacitors
