500MXK560MEFCSN30X60 - Rubycon

Description: 560µF 500V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 500MXK560MEFCSN30X60 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
500MXK560MEFCSN30X60 - Rubycon - PCB symbol
click to zoom
PCB Footprints

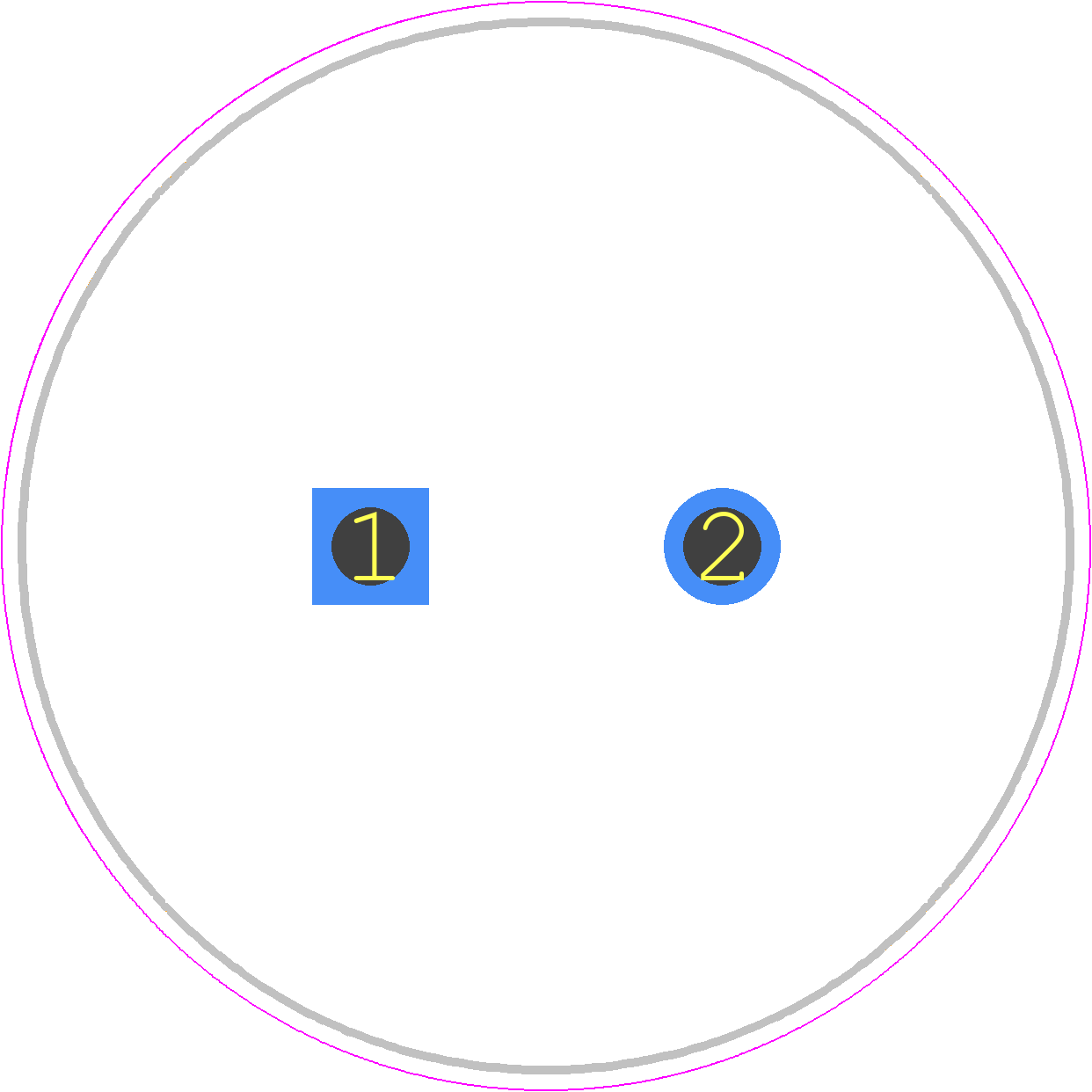

500MXK560MEFCSN30X60 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30x60
click to zoom
3D Models
500MXK560MEFCSN30X60 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30x60
click to zoom

500MXK560MEFCSN30X60 Details

  • Manufacturer Part Number:

    500MXK560MEFCSN30X60

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.58745 mA

  • Length:

    60 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    2470 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

500MXK560MEFCSN30X60 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 80% or less to ensure reliable operation and extend the lifespan of the capacitor.
  • The ESR of the 500MXK560MEFCSN30X60 capacitor decreases with increasing frequency. According to Rubycon's application notes, the ESR at 100 kHz is approximately 1/3 of the ESR at 100 Hz.
  • The 500MXK560MEFCSN30X60 capacitor has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, the capacitor's lifespan and performance may degrade at elevated temperatures.
  • Rubycon recommends using a reflow soldering method with a peak temperature of 260°C or less. The capacitor should be mounted with the terminals facing downwards to prevent moisture ingress.
  • The capacitance of the 500MXK560MEFCSN30X60 capacitor decreases with increasing temperature. According to Rubycon's datasheet, the capacitance at 125°C is approximately 80% of the capacitance at 20°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

500MXK560MEFCSN30X60 Overview

Use the download button to access the 500MXK560MEFCSN30X60 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 500MX, or try a keyword search, such as Aluminum Electrolytic Capacitors
