500MXK680MEFCSN35X55 - Rubycon

Description: CAP ALUM 680UF 20% 500V SNAP-IN

Download 500MXK680MEFCSN35X55 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
500MXK680MEFCSN35X55 - Rubycon - PCB symbol
click to zoom
PCB Footprints

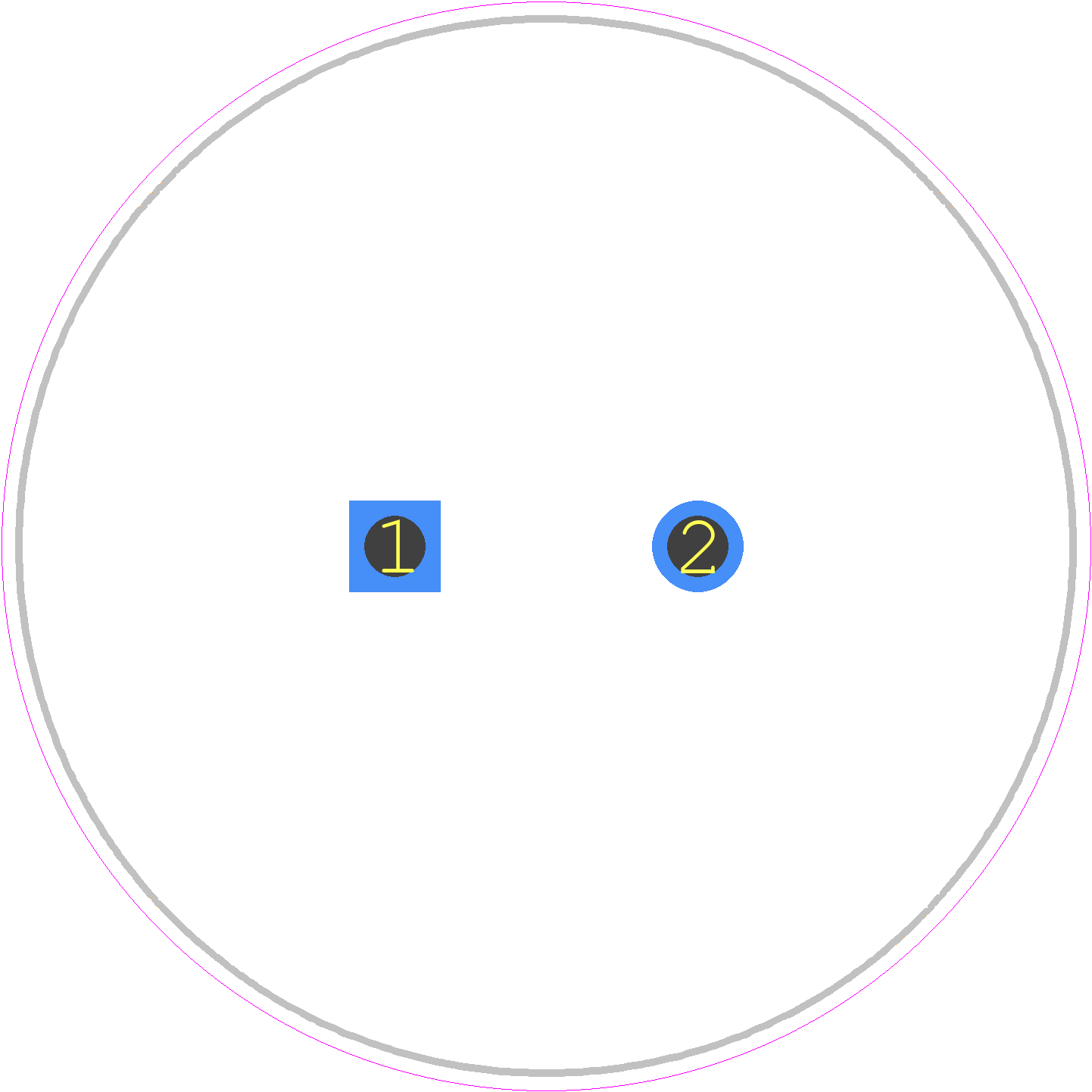

500MXK680MEFCSN35X55 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*55
click to zoom
3D Models
500MXK680MEFCSN35X55 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 35*55
click to zoom

500MXK680MEFCSN35X55 Details

  • Manufacturer Part Number:

    500MXK680MEFCSN35X55

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.74929 mA

  • Length:

    55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    2560 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

500MXK680MEFCSN35X55 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 500MXK680MEFCSN35X55 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 500MXK680MEFCSN35X55 is designed to withstand high vibrations and is suitable for use in applications with mechanical stress.
  • Yes, the 500MXK680MEFCSN35X55 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in EU and other environmentally conscious markets.
  • The maximum permissible ripple current for the 500MXK680MEFCSN35X55 is 3.5 Arms at 100 kHz and 105°C.
  • The 500MXK680MEFCSN35X55 is rated for operation up to 105°C, making it suitable for use in high-temperature applications. However, the capacitor's lifespan may be affected by prolonged exposure to high temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

500MXK680MEFCSN35X55 Overview

Use the download button to access the 500MXK680MEFCSN35X55 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 500MX, or try a keyword search, such as Aluminum Electrolytic Capacitors
