500VXG47MEFCSN22X25 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 500VXG47MEFCSN22X25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
500VXG47MEFCSN22X25 - Rubycon - PCB symbol
click to zoom
PCB Footprints

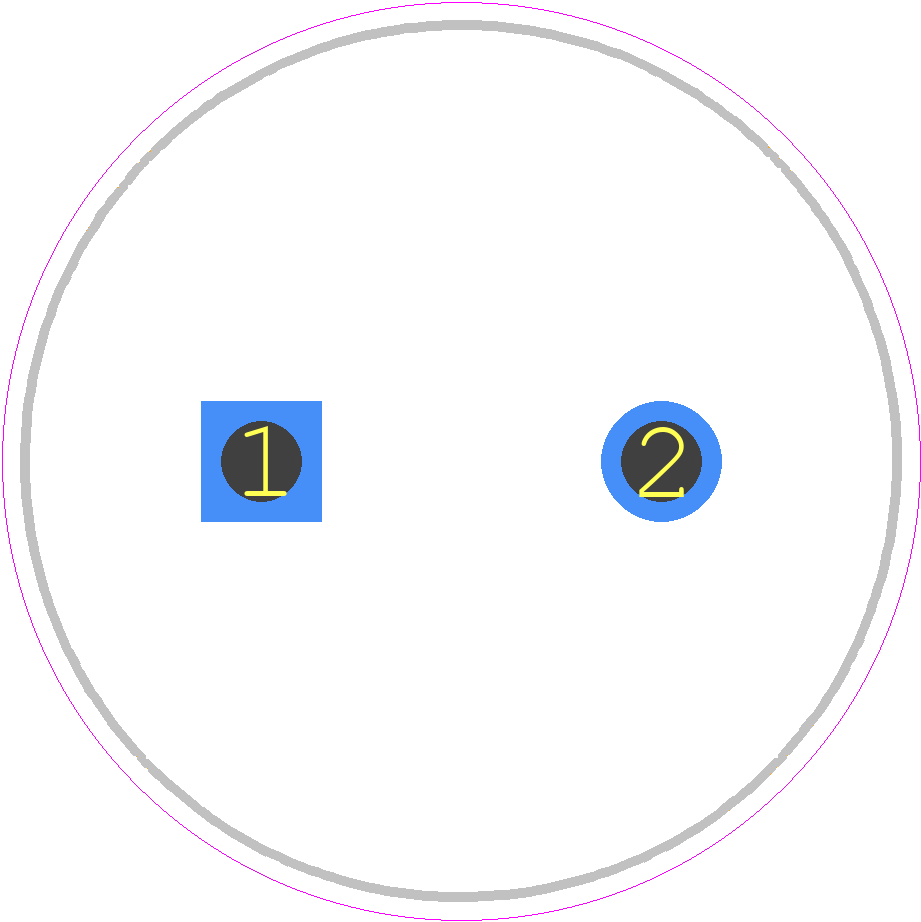

500VXG47MEFCSN22X25 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x25
click to zoom
3D Models
500VXG47MEFCSN22X25 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 22x25
click to zoom

500VXG47MEFCSN22X25 Details

  • Manufacturer Part Number:

    500VXG47MEFCSN22X25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.45989 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    580 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

500VXG47MEFCSN22X25 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the voltage by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 500VXG47MEFCSN22X25 is designed to operate up to 125°C, but Rubycon recommends reducing the voltage rating by 1.25% for every 1°C above 85°C to ensure reliability.
  • The ESR of the 500VXG47MEFCSN22X25 is not explicitly stated in the datasheet, but Rubycon's general guideline for XG series capacitors is an ESR of around 0.05Ω to 0.1Ω at 100kHz.
  • The 500VXG47MEFCSN22X25 is designed for general-purpose use, but it can be used in high-frequency applications up to 100kHz. However, Rubycon recommends consulting their application notes for specific guidance on high-frequency usage.
  • Rubycon recommends soldering the 500VXG47MEFCSN22X25 at a temperature of 250°C to 260°C for 3-5 seconds, with a peak temperature not exceeding 280°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

500VXG47MEFCSN22X25 Overview

Use the download button to access the 500VXG47MEFCSN22X25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 500VX, or try a keyword search, such as Aluminum Electrolytic Capacitors
