501616-2575 - Molex

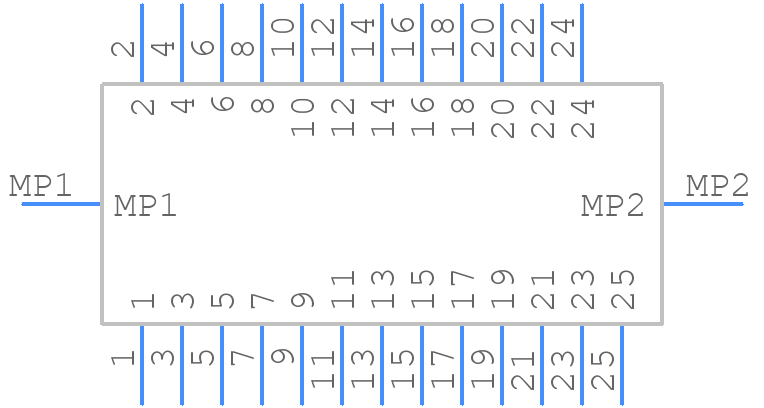

501616-2575 Details

• Manufacturer Part Number:

  501616-2575

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS AND REACH COMPLIANT

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Molex

• Additional Feature:

  EMBOSSED TAPE AND REEL PKG

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.043 inch

• Body Depth:

  0.136 inch

• Body Length:

  0.37 inch

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  125VAC V

• Durability:

  10 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYMER

• MIL Conformance:

  NO

• Manufacturer Series:

  501616

• Mating Contact Pitch:

  0.012 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.921 mm

• Plating Thickness:

  4u inch

• Rated Current (Signal):

  0.2 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Pitch:

  0.3 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  ZIF N
