Part Image

501951-2210 - Molex

Description: Molex 501951 Series 0.5mm Pitch 22 Way SMT Female FPC Connector

Download 501951-2210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

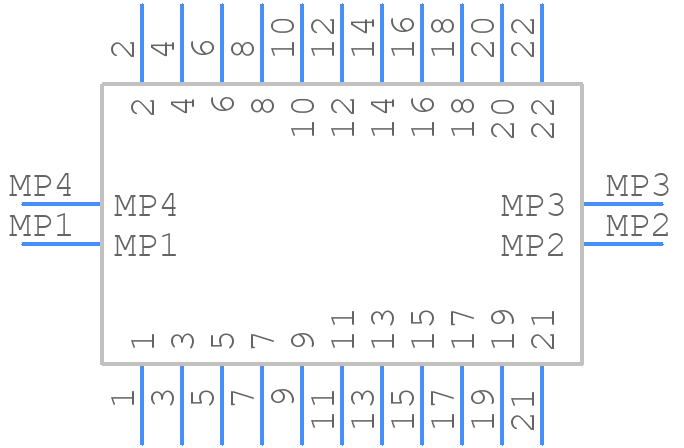

501951-2210 - Molex - PCB symbol
click to zoom
PCB Footprints
501951-2210 - Molex PCB footprint - Other - Other - 501951-2210-2
click to zoom
3D Models
501951-2210 - Molex - 3D model - Other - 501951-2210-2
click to zoom

501951-2210 Details

  • Manufacturer Part Number:

    501951-2210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Body Breadth:

    0.177 inch

  • Body Depth:

    0.181 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Filter Feature:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8956 mm

  • Plating Thickness:

    4u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.9906 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    22

501951-2210 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5019512210 connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 5019512210 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 5019512210 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly lines. However, it's essential to consult with Molex or a qualified engineer to ensure proper integration and setup.
  • The recommended wire size for the 5019512210 connector is 24-20 AWG (0.25-0.5 mm²). It's essential to use wires that meet the specified size and type to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

501951-2210 Overview

Use the download button to access the 501951-2210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50195, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
