501951-2400 - Molex

Description: FFC & FPC Connectors 24C .5FPC HSG ASSY

Download 501951-2400 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

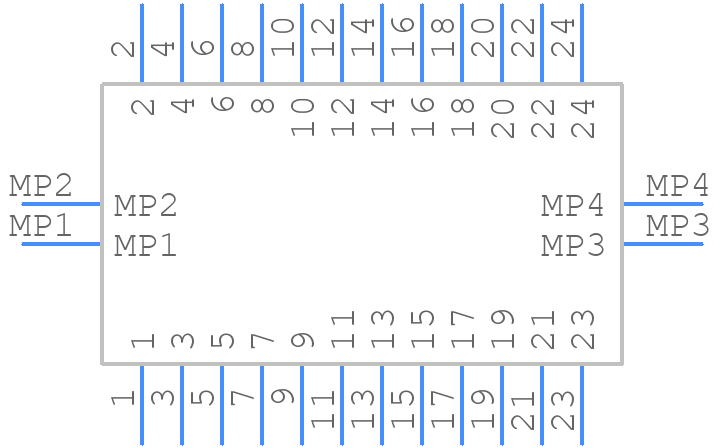

Symbol
501951-2400 - Molex - PCB symbol
click to zoom
PCB Footprints
501951-2400 - Molex PCB footprint - Other - Other - 501951-2400-2
click to zoom
3D Models
501951-2400 - Molex - 3D model - Other - 501951-2400-2
click to zoom

501951-2400 Details

  • Manufacturer Part Number:

    501951-2400

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.48

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Bismuth (Sn/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e6

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

501951-2400 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the 501951-2400 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 501951-2400 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 501951-2400 connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum current rating for each contact is 3A (Amps) at 20°C (68°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

501951-2400 Overview

Use the download button to access the 501951-2400 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50195, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
