- Part Number 501951-4500
- Manufacturer Molex
- Pin Count 49
- Part Category Connector
- Package Category Other
- Footprint Name Other - 501951-4500-2
- Released Date Nov 28, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
501951-4500 Details
-
Manufacturer Part Number:
501951-4500
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan, Mainland China
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Molex
-
YTEOL:
6.67
-
Connector Type:
FFC/FPC CONNECTOR
501951-4500 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
-
Yes, the 501951-4500 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
-
The operating temperature range for the 501951-4500 connector is -40°C to 105°C (-40°F to 221°F), but it's recommended to consult the datasheet for specific temperature ratings for each component.
-
The 501951-4500 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Consult Molex's environmental sealing guidelines for more information.
-
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use other wire sizes with the 501951-4500 connector. However, it's recommended to consult with a Molex representative to ensure compatibility and to discuss any potential modifications or custom designs.
Trust Checks
Expert Contribution
System Verified
Community Approved
501951-4500 Overview

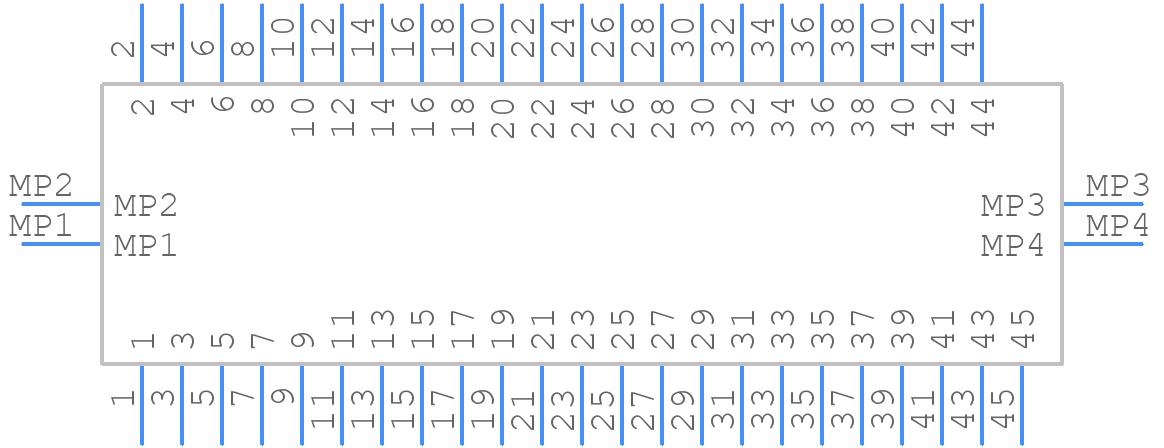

Use the download button to access the 501951-4500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50195,
or try a keyword search, such as Headers and Edge Type Connectors
