503566-4502 - Molex

Description: FFC & FPC Connectors Easy-On .3mm FPC Conn RA 45Ckt

Download 503566-4502 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

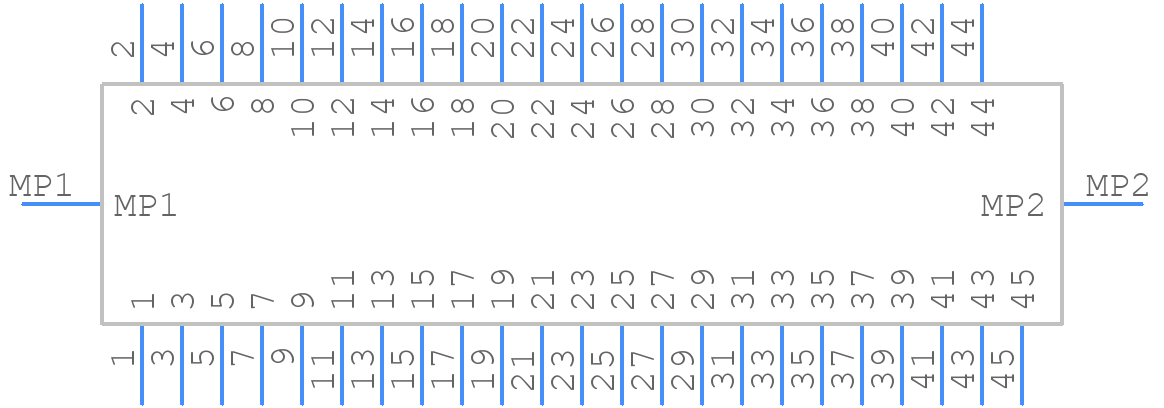

503566-4502 - Molex - PCB symbol
