5054482271 - Molex

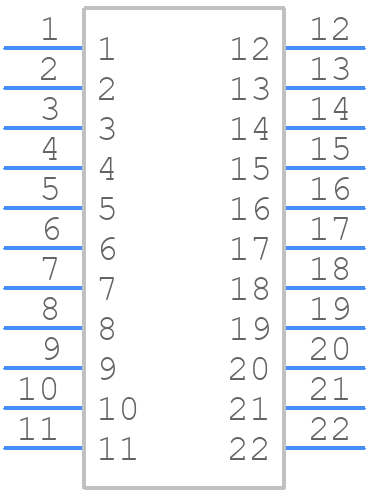

5054482271 Details

• Manufacturer Part Number:

  5054482271

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  8.3

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.352 inch

• Body Depth:

  0.348 inch

• Body Length:

  0.722 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin/Bismuth (Sn/Bi)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e6

• Mating Contact Pitch:

  0.049 inch

• Mating Information:

  MULTIPLE MATING PARTS ARE AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  7.4 mm

• Plating Thickness:

  39.37u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  22

• UL Flammability Code:

  94V-0
