50MXG10000MEFCSN35X30 - Rubycon

Description: CAP ALUM 10000UF 20% 50V SNAP

Download 50MXG10000MEFCSN35X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50MXG10000MEFCSN35X30 - Rubycon - PCB symbol
click to zoom
PCB Footprints

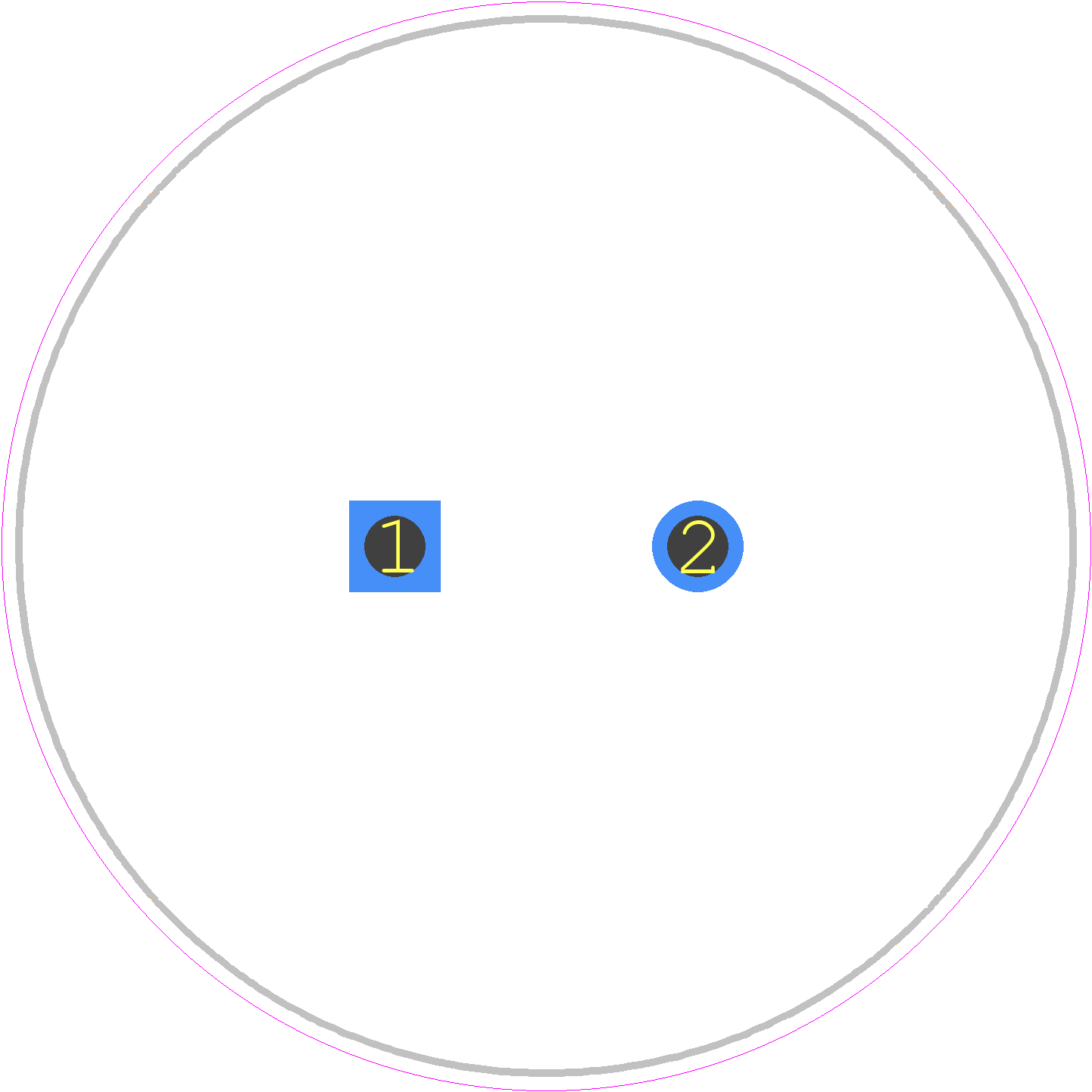

50MXG10000MEFCSN35X30 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35x45
click to zoom
3D Models
50MXG10000MEFCSN35X30 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 35x45
click to zoom

50MXG10000MEFCSN35X30 Details

  • Manufacturer Part Number:

    50MXG10000MEFCSN35X30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    7

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.12132 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    4050 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

50MXG10000MEFCSN35X30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 50MXG10000MEFCSN35X30 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 50MXG10000MEFCSN35X30 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, and is suitable for use in high-vibration environments.
  • Yes, the 50MXG10000MEFCSN35X30 is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE).
  • The ESR of the 50MXG10000MEFCSN35X30 is typically around 30mΩ at 100kHz, but this value can vary depending on the frequency and temperature.
  • The 50MXG10000MEFCSN35X30 is rated for operation up to 105°C, but its capacitance and ESR may degrade at higher temperatures. It's recommended to derate the capacitor's specifications according to the temperature derating curve provided in the datasheet.
