50MXG15000MEFCSN35X40 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Download 50MXG15000MEFCSN35X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50MXG15000MEFCSN35X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

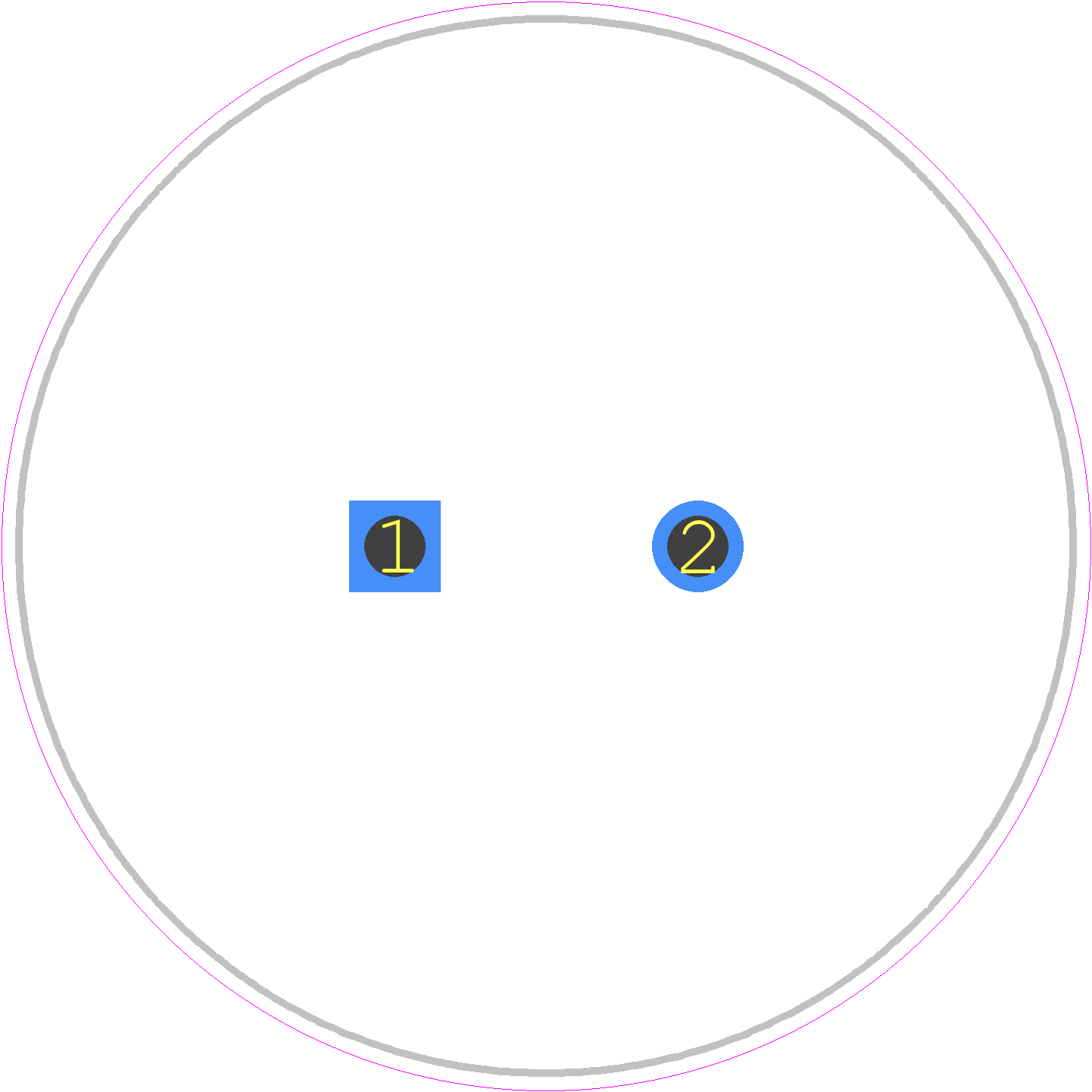

50MXG15000MEFCSN35X40 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35mm x 40mm
click to zoom
3D Models
50MXG15000MEFCSN35X40 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 35mm x 40mm
click to zoom

50MXG15000MEFCSN35X40 Details

  • Manufacturer Part Number:

    50MXG15000MEFCSN35X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    7

  • Capacitance:

    15000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.59808 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    4770 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

50MXG15000MEFCSN35X40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 50MXG15000MEFCSN35X40 is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the 50MXG15000MEFCSN35X40 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the 50MXG15000MEFCSN35X40 can be found in the Rubycon Corporation's application notes or by contacting their technical support directly. Generally, it's recommended to derate the capacitor's voltage rating by 10-20% for every 10°C increase above the maximum operating temperature.
  • The 50MXG15000MEFCSN35X40 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Rubycon Corporation's technical support or consider using a capacitor with specific vibration-resistant features.
  • The ESR of the 50MXG15000MEFCSN35X40 is not explicitly stated in the datasheet. However, Rubycon Corporation provides ESR data for their capacitors in their technical notes or upon request. Typically, the ESR for this type of capacitor ranges from 10-50 mΩ.
