50MXG4700MEFCSN22X40 - Rubycon

Description: 4700 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

Download 50MXG4700MEFCSN22X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50MXG4700MEFCSN22X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

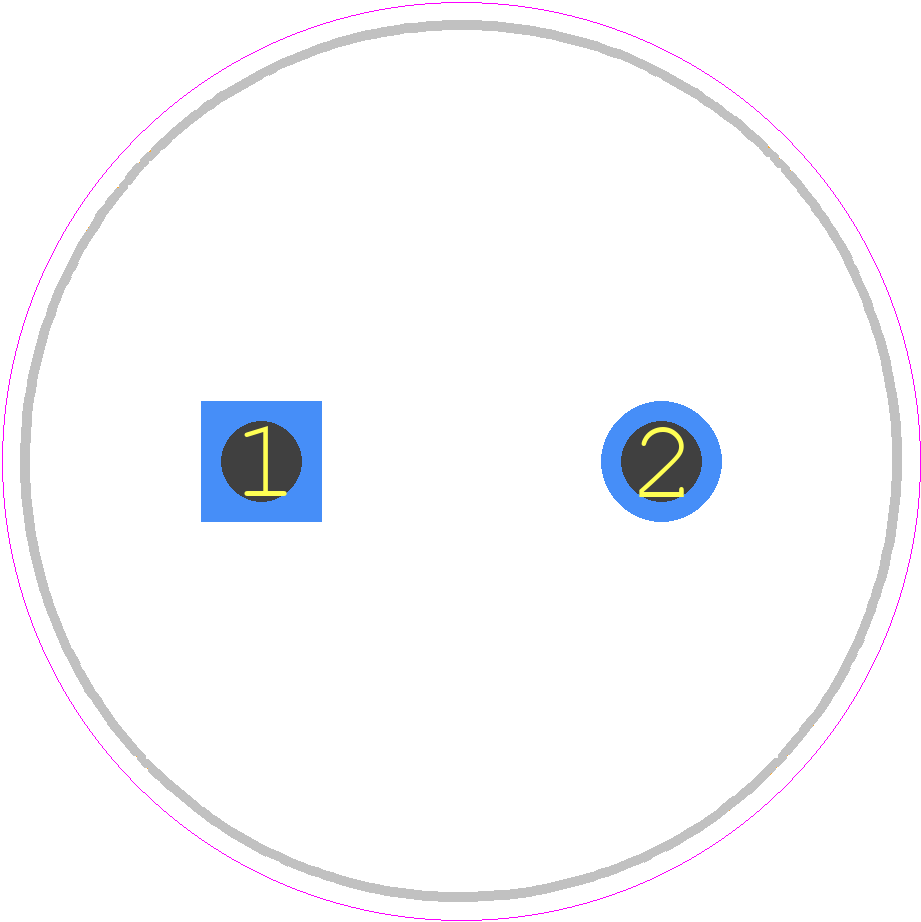

50MXG4700MEFCSN22X40 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x40mm
click to zoom
3D Models
50MXG4700MEFCSN22X40 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 22x40mm
click to zoom

50MXG4700MEFCSN22X40 Details

  • Manufacturer Part Number:

    50MXG4700MEFCSN22X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.4543 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2430 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

50MXG4700MEFCSN22X40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 50MXG4700MEFCSN22X40 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 50MXG4700MEFCSN22X40 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • The 50MXG4700MEFCSN22X40 is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • The 50MXG4700MEFCSN22X40 should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
  • Yes, the 50MXG4700MEFCSN22X40 is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
