Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
The 50SVF68M capacitor is designed to handle high-frequency noise and ripple due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for use in high-frequency circuits and can help reduce electromagnetic interference (EMI).
Yes, the 50SVF68M capacitor is suitable for use in high-reliability applications due to its high-quality materials, robust construction, and rigorous testing procedures. It meets the requirements of various industry standards, including AEC-Q200 and IEC 60384-16.
The shelf life of the 50SVF68M capacitor is typically 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions (temperature: 5°C to 30°C, humidity: 60% or less).
Yes, the 50SVF68M capacitor is suitable for use in automotive applications due to its high reliability, robustness, and compliance with automotive industry standards, such as AEC-Q200.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
50SVF68M Overview

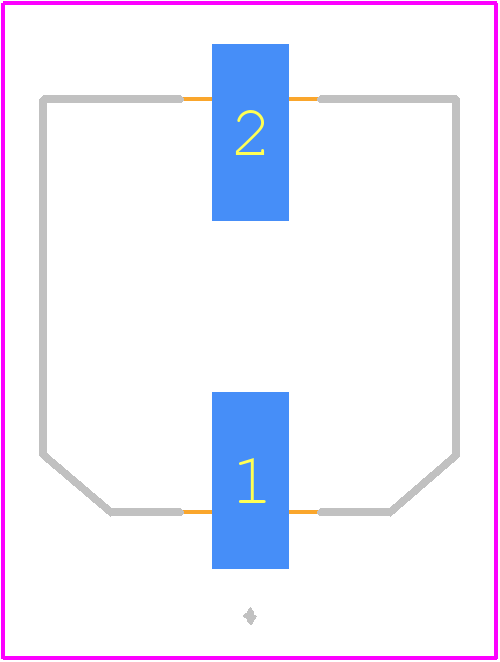

Use the download button to access the 50SVF68M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50SVF,
or try a keyword search, such as Ceramic Capacitors
