50SVPK22M - Panasonic

50SVPK22M Frequently Asked Questions (FAQs)

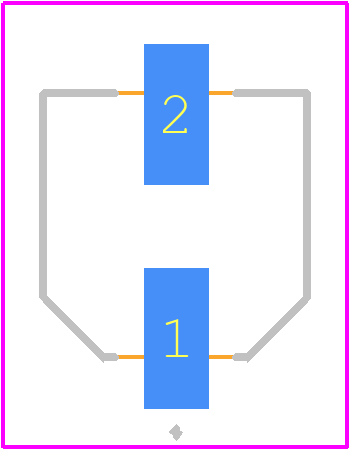

• What is the recommended land pattern for the 50SVPK22M?
  The recommended land pattern for the 50SVPK22M is a rectangular pad with a size of 2.5mm x 1.6mm, with a solder mask opening of 2.2mm x 1.3mm.
• How do I handle the thermal considerations for the 50SVPK22M?
  To handle thermal considerations, ensure good thermal conductivity between the component and the PCB by using a thermal pad or a thermal interface material. Also, ensure good airflow around the component to prevent overheating.
• What is the maximum operating temperature range for the 50SVPK22M?
  The maximum operating temperature range for the 50SVPK22M is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
• How do I ensure the reliability of the 50SVPK22M in high-vibration environments?
  To ensure reliability in high-vibration environments, use a secure mounting method such as screwing or adhesive bonding, and ensure the PCB is designed to withstand vibrations. Also, consider using a vibration-dampening material or a shock-absorbing mount.
• What is the recommended soldering profile for the 50SVPK22M?
  The recommended soldering profile for the 50SVPK22M is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Ensure the soldering process is done in a nitrogen atmosphere to prevent oxidation.
