50USC10000MEFCSN25X50 - Rubycon

Description: 10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C

Download 50USC10000MEFCSN25X50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50USC10000MEFCSN25X50 - Rubycon - PCB symbol
click to zoom
PCB Footprints

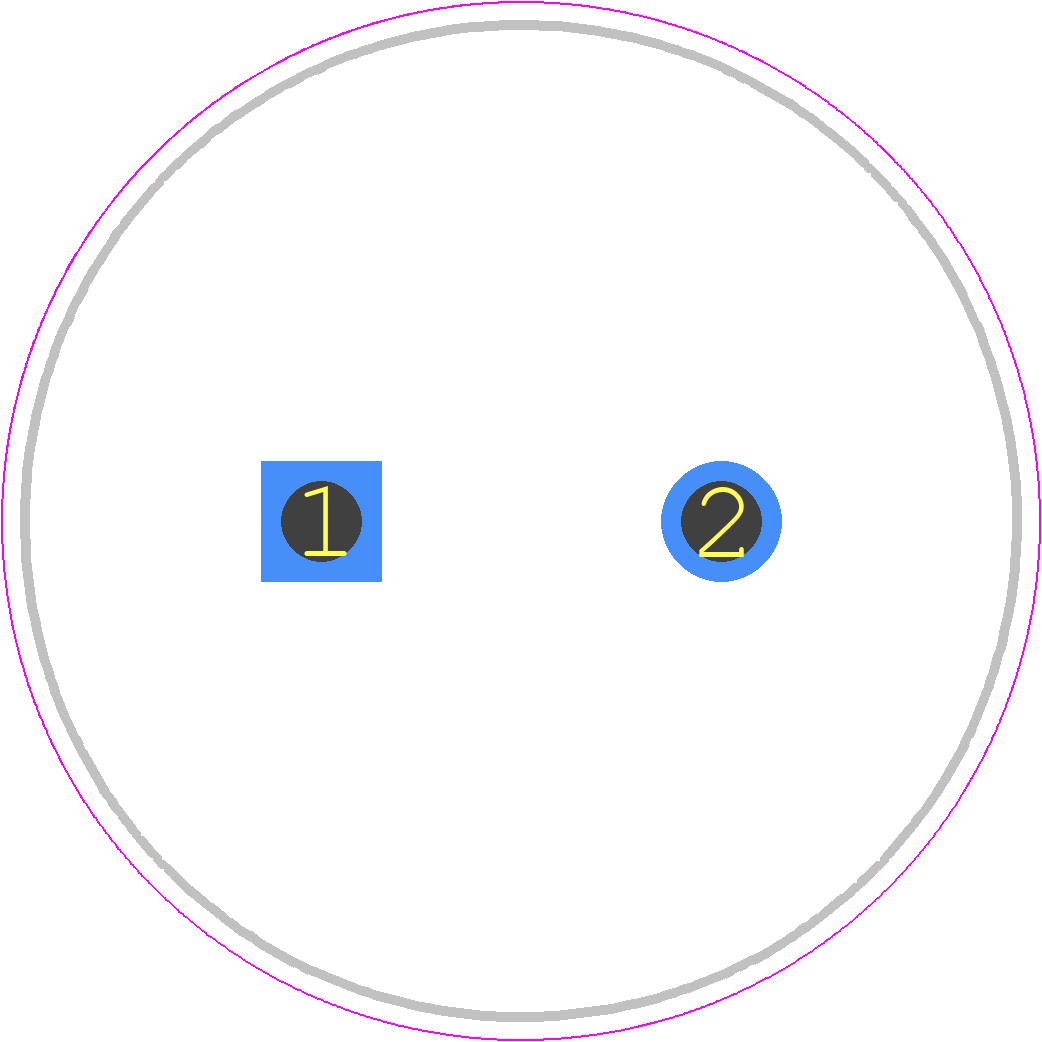

50USC10000MEFCSN25X50 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mmX50mm
click to zoom
3D Models
50USC10000MEFCSN25X50 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25mmX50mm
click to zoom

50USC10000MEFCSN25X50 Details

  • Manufacturer Part Number:

    50USC10000MEFCSN25X50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    3

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.12132 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    3940 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

50USC10000MEFCSN25X50 Frequently Asked Questions (FAQs)

  • Rubycon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the 50USC10000MEFCSN25X50 capacitor decreases with increasing frequency, but Rubycon provides a graph in the datasheet to illustrate this relationship.
  • The maximum ripple current rating for the 50USC10000MEFCSN25X50 capacitor is 3.5A RMS at 100kHz, 120Hz, and Ta=85°C.
  • Yes, the 50USC10000MEFCSN25X50 capacitor is designed for high-reliability applications and meets the requirements of various industry standards, including IEC 60384-4 and MIL-C-39006.
  • The 50USC10000MEFCSN25X50 capacitor has an MSL rating of 2, indicating that it can withstand exposure to moisture for up to 4 days without requiring baking or other special handling.
