50VXG4700MEFCSN30X30 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 50VXG4700MEFCSN30X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50VXG4700MEFCSN30X30 - Rubycon - PCB symbol
click to zoom
PCB Footprints

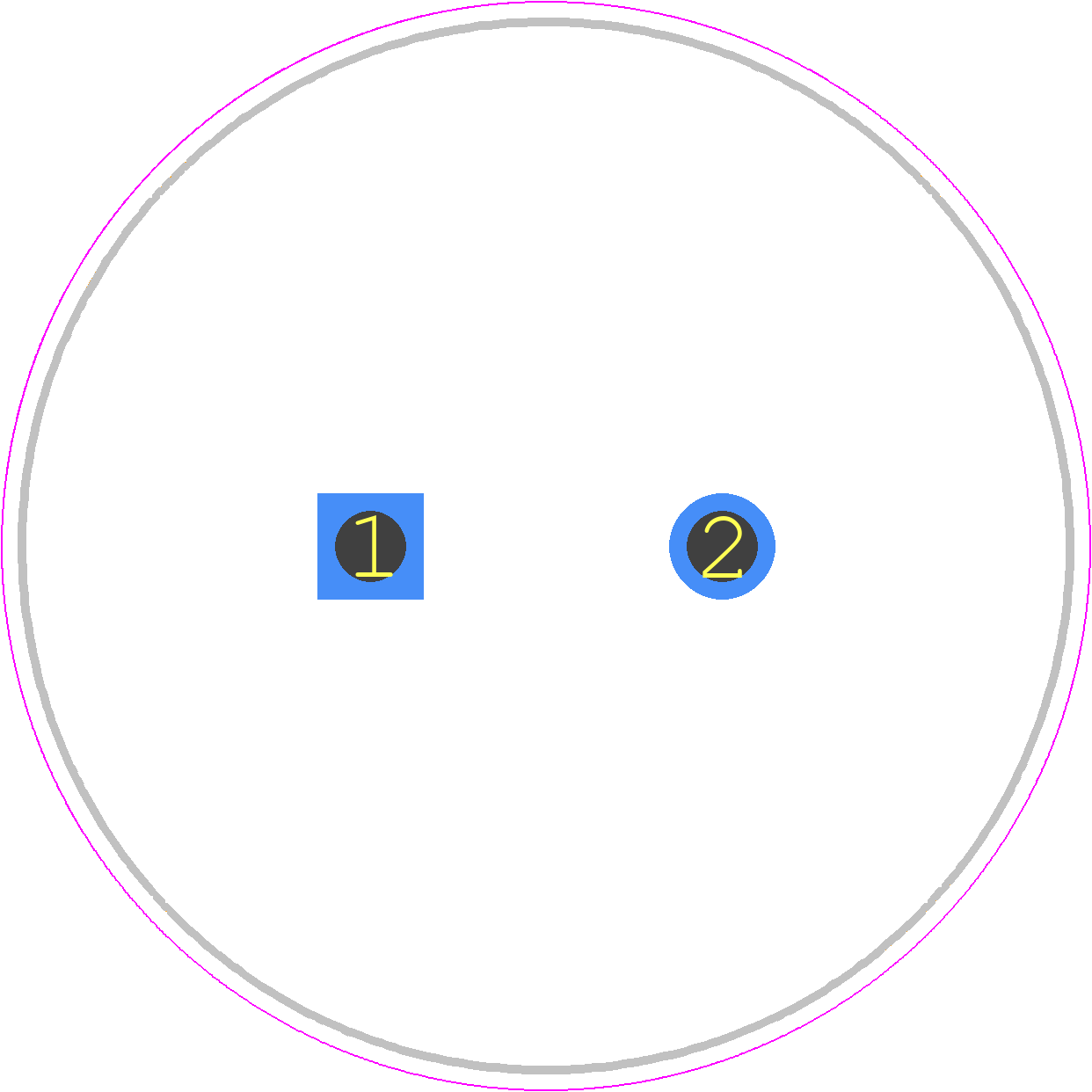

50VXG4700MEFCSN30X30 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*30
click to zoom
3D Models
50VXG4700MEFCSN30X30 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30*30
click to zoom

50VXG4700MEFCSN30X30 Details

  • Manufacturer Part Number:

    50VXG4700MEFCSN30X30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.4543 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    2220 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

50VXG4700MEFCSN30X30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 50VXG4700MEFCSN30X30 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, the 50VXG4700MEFCSN30X30 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of the 50VXG4700MEFCSN30X30 is typically around 0.05 ohms, but this value can vary depending on the frequency and operating conditions.
  • The 50VXG4700MEFCSN30X30 is designed to withstand moderate vibration, but it's not suitable for extreme vibration environments. If you need a capacitor for high-vibration applications, consider Rubycon's vibration-resistant series, such as the VXG-V series.
  • The MSL of the 50VXG4700MEFCSN30X30 is level 3, which means it can withstand exposure to moisture for up to 168 hours without requiring special handling or storage.
