510FBA200M000BAGR footprint, schematic symbol and 3D model by Skyworks

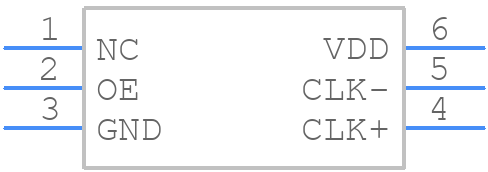

Symbol

PCB Footprints

3D Models

510FBA200M000BAGR Details

Manufacturer Part Number:
510FBA200M000BAGR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Skyworks Solutions Inc
YTEOL:
6
Additional Feature:
TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Fall Time-Max:
0.8 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
200 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
SOLCC6,.12
Packing Method:
TR
Physical Dimension:
5.0mm x 3.2mm x 1.28mm
Qualification Status:
Not Qualified
Rise Time-Max:
0.8 ns
Screening Level:
MIL-STD-883
Supply Current-Max:
23 mA
Supply Voltage-Max:
2.75 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Terminal Finish:
Nickel/Gold (Ni/Au)

The recommended PCB layout and land pattern can be found in the Skyworks Solutions Inc. application note AN-200060, which provides guidelines for optimal performance and thermal management.
Proper thermal management can be achieved by following the guidelines in the datasheet and application note AN-200060, which include using a thermal pad, thermal vias, and a heat sink if necessary. Additionally, ensuring good airflow and keeping the device away from heat sources can help with heat dissipation.
The maximum operating temperature range for the 510FBA200M000BAGR is -40°C to +125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
The 510FBA200M000BAGR is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure the device is properly sealed and protected from environmental factors.
The recommended storage and handling procedure for the 510FBA200M000BAGR includes storing the device in its original packaging, away from direct sunlight, moisture, and extreme temperatures. It's also recommended to handle the device by the body and avoid touching the pins or electrical connections.

Community Provided

System Verified

Community Approved

Use the download button to access the 510FBA200M000BAGR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 510FB, or try a keyword search, such as XO

Showing 0 results

Image	Part Number	Model
	510FBA200M000BAG Skyworks Solutions Inc LVDS Output Clock Oscillator, 200MHz Nom
For a full list of alternate parts for 510FBA200M000BAGR, check out Findchips.com
