510GBA100M000BAG - Skyworks

Description: 100 MHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead

Download 510GBA100M000BAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

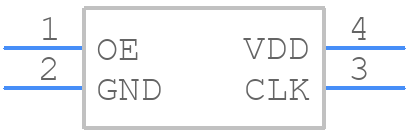

510GBA100M000BAG - Skyworks - PCB symbol
click to zoom
PCB Footprints
510GBA100M000BAG - Skyworks PCB footprint - Other - Other - 510GBA100M000BAG-1
click to zoom
3D Models
510GBA100M000BAG - Skyworks - 3D model - Other - 510GBA100M000BAG-1
click to zoom

510GBA100M000BAG Details

  • Manufacturer Part Number:

    510GBA100M000BAG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CLCC-4

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.5

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    1.2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    DILCC4,.12

  • Packing Method:

    TAPE

  • Physical Dimension:

    5.0mm x 3.2mm x 1.28mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    1.2 ns

  • Screening Level:

    MIL-STD-883

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

510GBA100M000BAG Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN-3021, which should be followed to ensure optimal performance and minimize parasitic effects.
  • The 510GBA100M000BAG has a maximum junction temperature of 150°C. Ensure proper thermal management by providing a heat sink or thermal pad, and following the recommended thermal design guidelines in the datasheet.
  • The recommended input and output matching networks can be found in the datasheet, but may require additional simulation and optimization for specific application requirements. Skyworks also provides a matching network design guide in their application note AN-2009.
  • Follow the recommended biasing circuit and voltage levels outlined in the datasheet. Ensure the voltage supply is stable and well-regulated, and consider using a voltage regulator or bias controller for optimal performance.
  • The 510GBA100M000BAG has a maximum power handling capability of 100 mW. Ensure the input power is within the recommended range to avoid damage to the device.
