510PCA125M000BAG - Skyworks

Description: Standard Clock Oscillators Differential/single-ended; single frequency XO; OE pin 2 (pin 1 for CMOS); 0.1-250 MHz

Download 510PCA125M000BAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

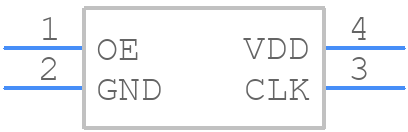

510PCA125M000BAG - Skyworks - PCB symbol
click to zoom
PCB Footprints
510PCA125M000BAG - Skyworks PCB footprint - Other - Other - 510PCA125M000BAG-1
click to zoom

510PCA125M000BAG Details

  • Manufacturer Part Number:

    510PCA125M000BAG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CLCC-6

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    1.2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    SOLCC6,.12

  • Packing Method:

    TAPE

  • Physical Dimension:

    5.0mm x 3.2mm x 1.33mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    1.2 ns

  • Screening Level:

    MIL-STD-883

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

510PCA125M000BAG Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN-2004, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The 510PCA125M000BAG has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device.
  • Skyworks recommends using a reflow soldering process with a peak temperature of 260°C for a maximum of 20 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
  • Skyworks provides a troubleshooting guide in their application note AN-2005, which covers common issues and their solutions. Additionally, it's essential to ensure proper PCB design, component selection, and assembly to minimize the risk of these issues.
  • The recommended input and output matching network depends on the specific application and frequency range. Skyworks provides general guidelines in their datasheet, but it's recommended to consult with their application engineers or use simulation tools to optimize the matching network for your specific design.
