511MLF - Renesas Electronics

Description: The 511 Loco™ is the most cost effective way to generate a high quality, high frequency clock output from a lower frequency crystal or clock input. The name LOCO stands for Low Cost Oscillator, as it is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 200 MHz. Stored in the chip's ROM is the ability to generate nine different multiplication factors, all

Download 511MLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

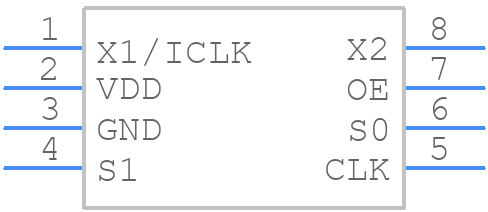

Symbol
511MLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
511MLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8
click to zoom
3D Models
511MLF - Renesas Electronics - 3D model - Small Outline Packages - DCG8
click to zoom

511MLF Details

  • Manufacturer Part Number:

    511MLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 3.3V SUPPLY WITH 160 MHZ OUTPUT FREQ

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

511MLF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 511MLF is -40°C to 125°C, although it can tolerate storage temperatures from -55°C to 150°C.
  • The 511MLF has a built-in POR and BOR circuitry that can be configured using the RSTPIN and VDET pins. The POR is triggered when the power supply voltage falls below the specified threshold, and the BOR is triggered when the voltage drops below the brown-out detection voltage. You can use external resistors and capacitors to adjust the reset timing and threshold.
  • The 511MLF can operate at a maximum clock frequency of 20 MHz, although the recommended frequency is 16 MHz for most applications.
  • The 511MLF's oscillator circuit can be configured using the XIN and XOUT pins. You can use an external crystal oscillator or a ceramic resonator, and the oscillator frequency can be adjusted using the FREQSEL pin.
  • The WDT is a safety feature that resets the microcontroller if it detects a software fault or a system malfunction. The WDT can be enabled or disabled using the WDTE bit in the SYSCR register, and the timeout period can be adjusted using the WDTPS bits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

511MLF Overview

Use the download button to access the 511MLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 511ML, or try a keyword search, such as Clock Generators
