51305C - Murata Electronics

51305C Frequently Asked Questions (FAQs)

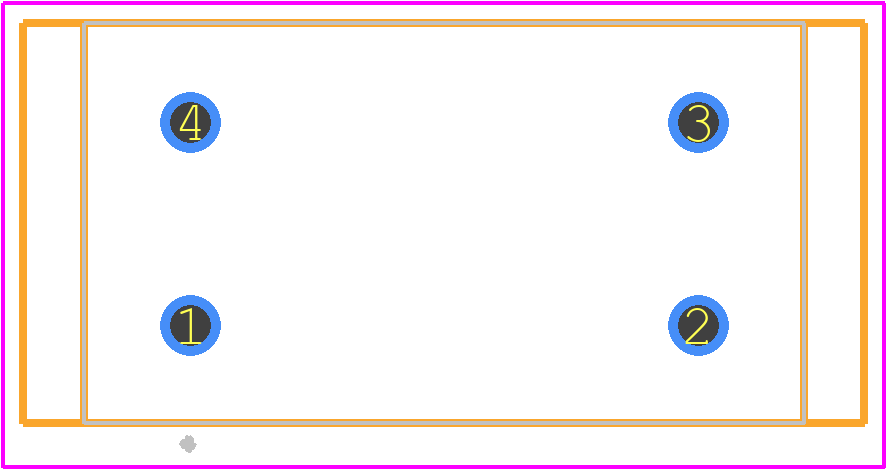

• What is the recommended land pattern for the 51305C?
  The recommended land pattern for the 51305C is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
• How do I handle the 51305C's sensitivity to moisture?
  To handle the 51305C's sensitivity to moisture, it is recommended to store the components in a dry environment with a relative humidity of 60% or less. It is also recommended to bake the components at 125°C for 24 hours before reflow soldering to remove any moisture that may have been absorbed during storage.
• What is the maximum reflow temperature for the 51305C?
  The maximum reflow temperature for the 51305C is 260°C. It is recommended to use a reflow profile with a peak temperature of 250°C to ensure reliable soldering and to prevent damage to the component.
• Can the 51305C be used in high-vibration applications?
  Yes, the 51305C is designed to withstand high-vibration environments. However, it is recommended to follow Murata's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent damage or detachment during operation.
• What is the recommended cleaning process for the 51305C?
  The recommended cleaning process for the 51305C involves using a mild detergent and deionized water to remove any flux residue or contaminants. Ultrasonic cleaning is not recommended, as it may damage the component. It is also recommended to avoid using harsh chemicals or solvents, as they may damage the component's materials.
