A good PCB layout for the 5173N24-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. THAT Corporation provides a recommended PCB layout in their application notes.
The 5173N24-U requires a specific bias voltage and current to operate optimally. Refer to the datasheet for the recommended bias voltage and current, and ensure that the bias circuitry is designed to provide a stable and low-noise supply.
The maximum power dissipation of the 5173N24-U is specified in the datasheet. To prevent overheating, ensure that the device is mounted on a suitable heat sink, and that the ambient temperature is within the recommended operating range.
The 5173N24-U is rated for operation up to a certain temperature range (specified in the datasheet). While it can operate at higher temperatures, its performance and reliability may be affected. Consult with THAT Corporation or a qualified engineer for guidance on using the device in high-temperature environments.
Common issues with the 5173N24-U can often be traced back to improper biasing, poor PCB layout, or inadequate decoupling. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking assistance from THAT Corporation's technical support team or a qualified engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5173N24-U Overview

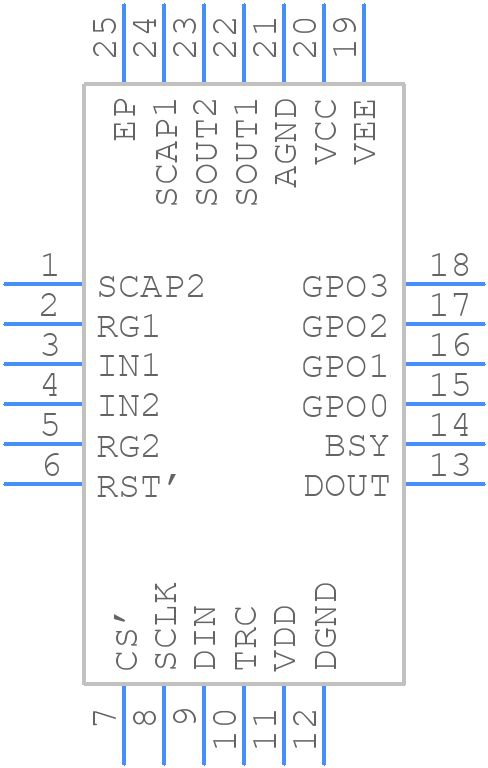

Use the download button to access the 5173N24-U schematic symbol, PCB footprint, and 3D model.
