The recommended torque for assembling the 51SP22-01-2-08N rotary switch is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow this torque specification to ensure proper assembly and prevent damage to the switch.
Yes, the 51SP22-01-2-08N rotary switch is designed to withstand moderate vibration levels. However, it's recommended to consult with Grayhill Inc or a qualified engineer to determine the switch's suitability for your specific application and vibration levels.
The 51SP22-01-2-08N rotary switch is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F) and humidity up to 95% RH. However, it's essential to consult the datasheet and Grayhill Inc for specific environmental requirements and any necessary derating or special considerations.
Yes, Grayhill Inc offers customization options for the 51SP22-01-2-08N rotary switch, including custom electrical configurations and labeling. Contact Grayhill Inc directly to discuss your specific requirements and feasibility.
The 51SP22-01-2-08N rotary switch is designed for a minimum of 10,000 cycles, but its actual lifespan may vary depending on factors such as usage, environment, and maintenance. Consult Grayhill Inc for more information on the switch's reliability and expected lifespan.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
51SP22-01-2-08N Overview

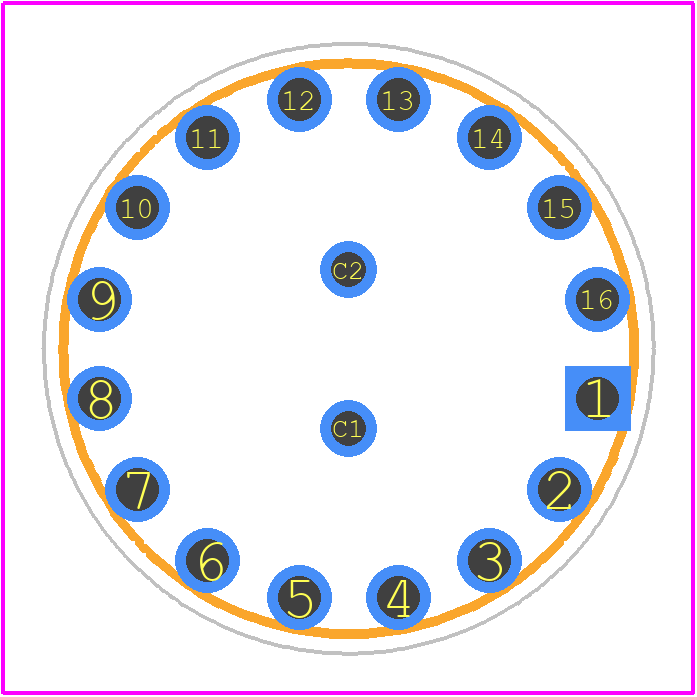

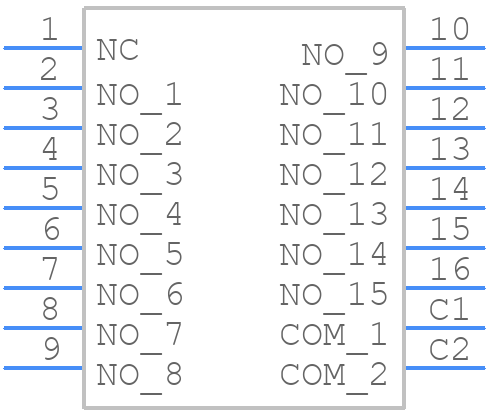

Use the download button to access the 51SP22-01-2-08N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 51SP2,
or try a keyword search, such as Rotary Switches
