5205735-7 - TE Connectivity

Description: Body Features: Connector Profile Standard | Shell Plating Material Zinc | Primary Product Color Black | Configuration Features: Number of Positions 15 | PCB Mount Orientation Vertical | Number of Rows 2 | Contact Features: Contact Current Rating (Max) 6 AMP | Contact Mating Area Plating Material Gold Flash over Palladium Nickel | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Gold | Contact Shape & Form Square | Contact Underplating Material Palladium Nickel | Conta

Download 5205735-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5205735-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

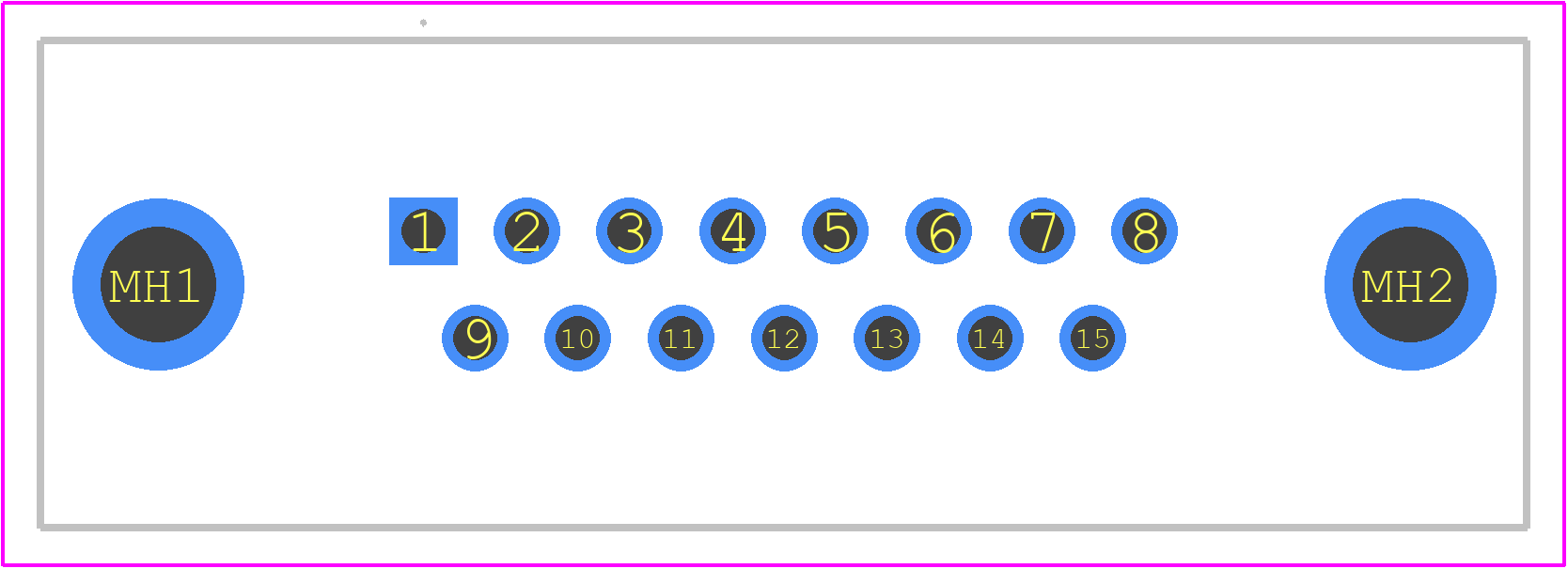

5205735-7 - TE Connectivity PCB footprint - Other - Other - 5205735-7-1
click to zoom
3D Models
5205735-7 - TE Connectivity - 3D model - Other - 5205735-7-1
click to zoom

5205735-7 Details

  • Manufacturer Part Number:

    5205735-7

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.18

  • Additional Feature:

    AMPLIMITE

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    ZINC

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Terminal Length:

    0.188 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

5205735-7 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5205735-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 5205735-7 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • Yes, the 5205735-7 connector is designed to operate in harsh environments. It has a sealed construction that protects the contacts from moisture, dust, and other contaminants. Additionally, the connector's materials are resistant to corrosion and can withstand exposure to certain chemicals.
  • While the 5205735-7 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to ensure the wire size and insulation type are compatible with the connector's contact design and wire termination method to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5205735-7 Overview

Use the download button to access the 5205735-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52057, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
