Part Image

5205858-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | Shell Plating Material Zinc | Primary Product Color Black | Configuration Features: Number of Rows 2 | PCB Mount Orientation Right Angle | Number of Positions 25 | Contact Features: Contact Underplating Material Nickel | Contact Mating Area Plating Material Gold Flash | PCB Contact Termination Area Plating Material Tin | Contact Shape & Form Square | Contact Current Rating (Max) 6 AMP | Contact Base Material Phosphor Bronze | Dimensions: Row-to-Row Spacing .112 IN

Download 5205858-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5205858-1 - TE Connectivity - PCB symbol
click to zoom

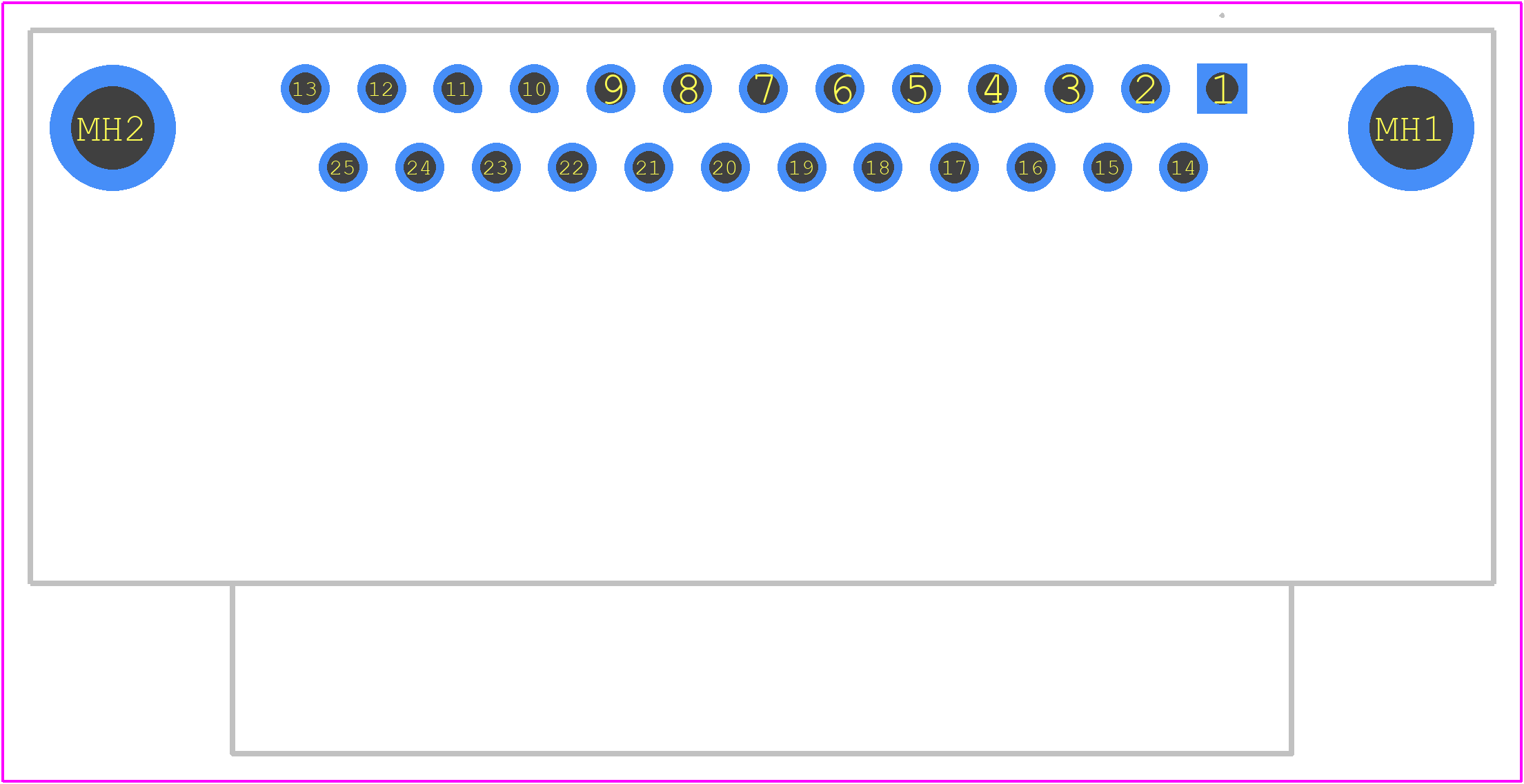

PCB Footprints
5205858-1 - TE Connectivity PCB footprint - Other - Other - 5205858-1-2
click to zoom
3D Models
5205858-1 - TE Connectivity - 3D model - Other - 5205858-1-2
click to zoom

5205858-1 Details

  • Manufacturer Part Number:

    5205858-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    ZINC

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

5205858-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 5205858-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 5205858-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 5205858-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications where it will be exposed to harsh chemicals or prolonged immersion in water.
  • The 5205858-1 connector has a mating cycle life of 500 cycles. This means it can be mated and unmated up to 500 times without compromising its performance or reliability.
