5205869-2 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | Shell Plating Material Zinc | Configuration Features: Number of Rows 3 | Number of Positions 50 | PCB Mount Orientation Right Angle | Contact Features: Contact Underplating Material Nickel | Contact Base Material Brass | PCB Contact Termination Area Plating Material Tin | Contact Shape & Form Square | Contact Current Rating (Max) 6 AMP | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gol

Download 5205869-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5205869-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

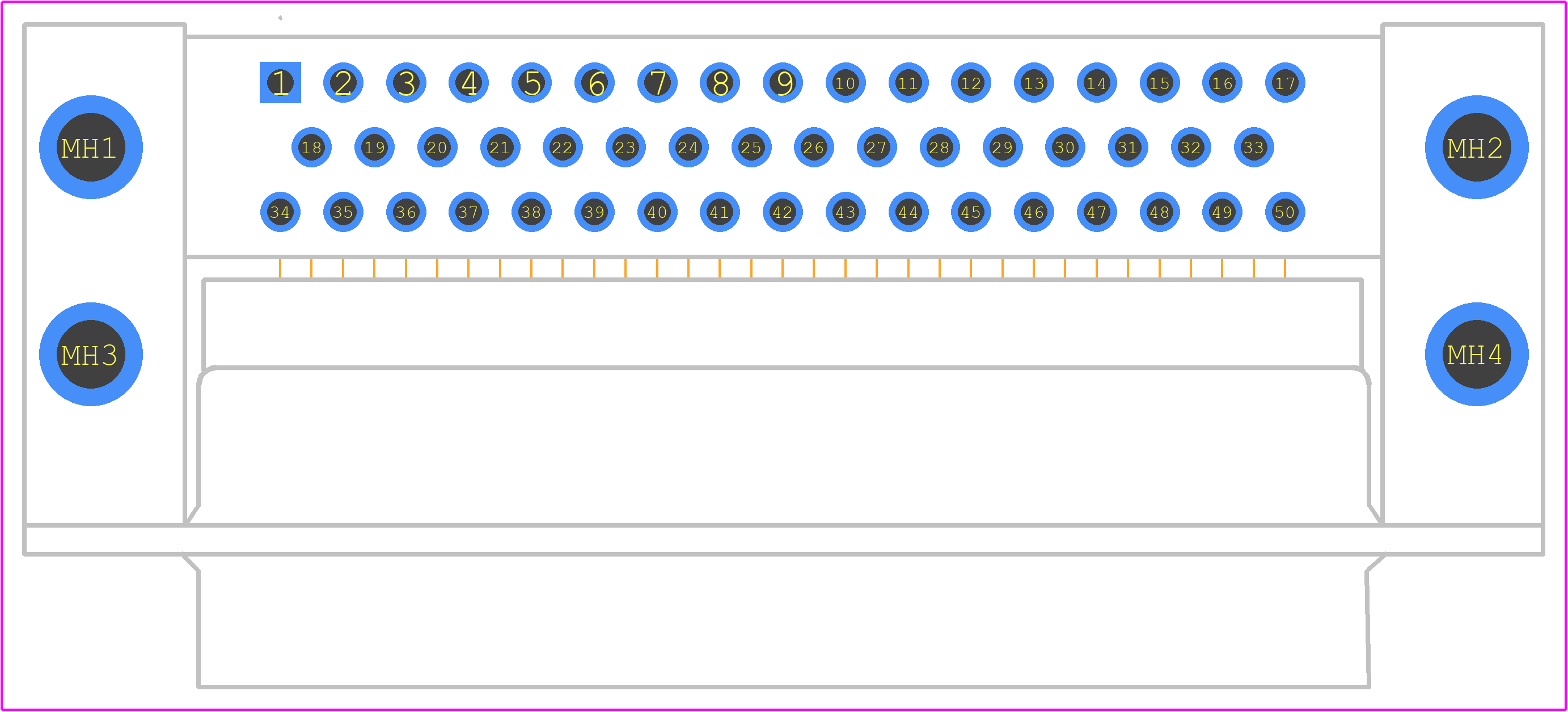

5205869-2 - TE Connectivity PCB footprint - Other - Other - 5205869-2-1
click to zoom
3D Models
5205869-2 - TE Connectivity - 3D model - Other - 5205869-2-1
click to zoom

5205869-2 Details

  • Manufacturer Part Number:

    5205869-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    ZINC

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

5205869-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 5205869-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 5205869-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • The 5205869-2 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for use in environments with exposure to specific chemicals or extreme conditions.
