5207828-4 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 25 | Contact Features: Contact Base Material Phosphor Bronze | Contact Current Rating (Max) 6 AMP | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Shape & Form Round | Contact Mating Area Plating Material Gold | Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Tin | Dimensions: Row-to-R

Download 5207828-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5207828-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

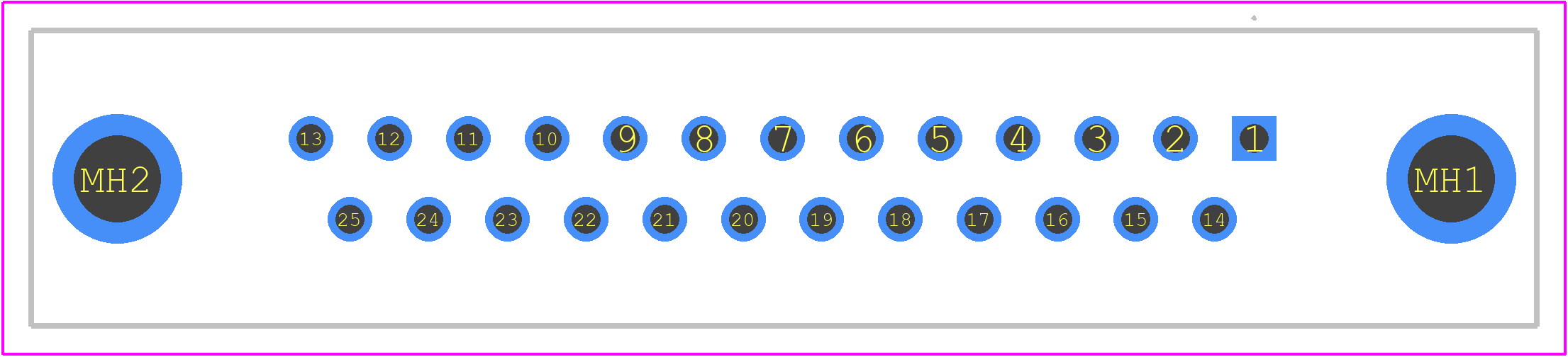

5207828-4 - TE Connectivity PCB footprint - Other - Other - 5207828-4-1
click to zoom
3D Models
5207828-4 - TE Connectivity - 3D model - Other - 5207828-4-1
click to zoom

5207828-4 Details

  • Manufacturer Part Number:

    5207828-4

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR
