5227161-2 - TE Connectivity

Description: BNC Connector, Jack, 50 ohm, Bayonet, 4 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount, -55 – 85 °C [-67 – 185 °F], Zinc, BNC , 500 V , -55°C ~ 85°C

Download 5227161-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5227161-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

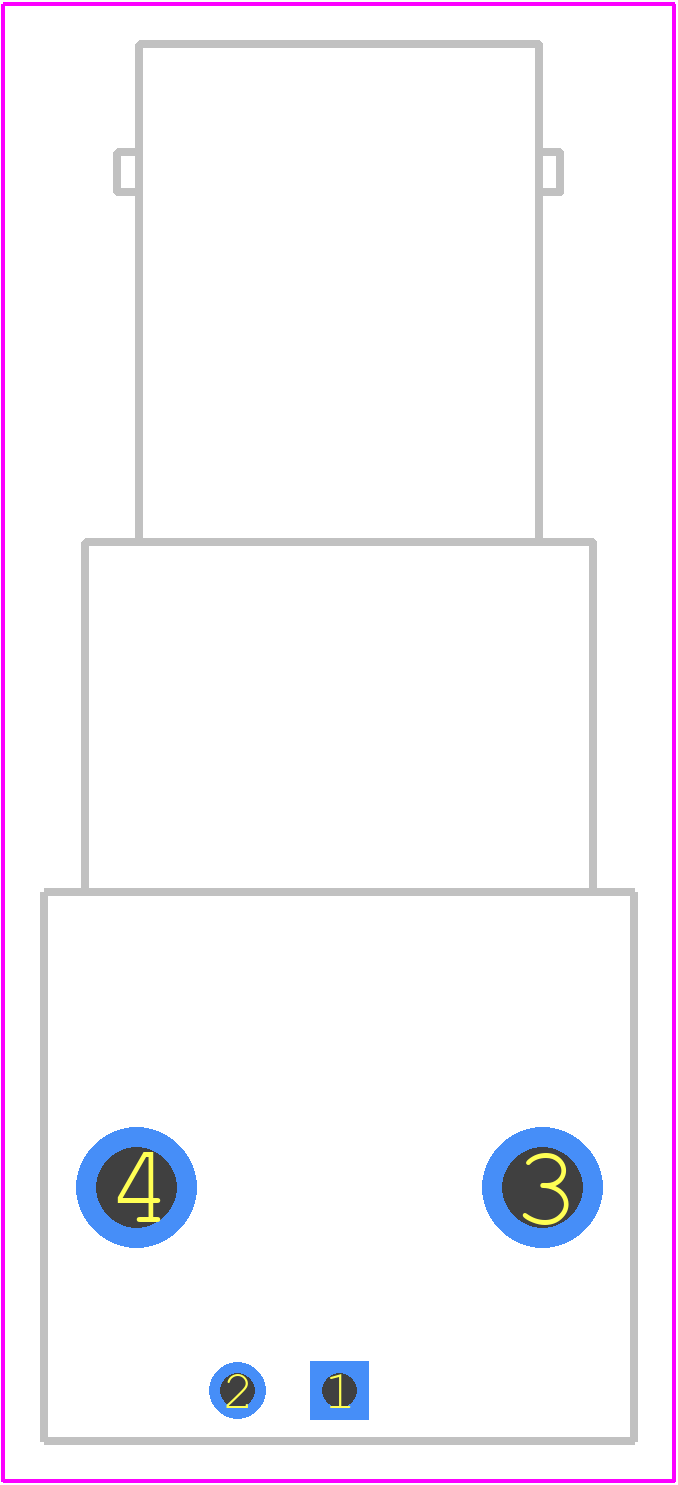

5227161-2 - TE Connectivity PCB footprint - Other - Other - 5227161-2-4
click to zoom
3D Models
5227161-2 - TE Connectivity - 3D model - Other - 5227161-2-4
click to zoom

5227161-2 Details

  • Manufacturer Part Number:

    5227161-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.625 inch

  • Body Depth:

    0.625 inch

  • Body Length:

    0.581 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    15.568 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYMETHYLPENTENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    4 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.162 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • Withdrawl Force-Min:

    .278 N

5227161-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 5227161-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5227161-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • While it's technically possible to use a different wire gauge, it's not recommended. Using a wire gauge outside the recommended range (22-18 AWG) may compromise the connector's performance, reliability, and safety. Consult TE Connectivity's application notes or technical support for guidance.
  • Yes, the 5227161-2 connector is designed to be compatible with other TE Connectivity products, such as their wire and cable assemblies. However, it's essential to verify compatibility and consult TE Connectivity's documentation or technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5227161-2 Overview

Use the download button to access the 5227161-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52271, or try a keyword search, such as RF BNC Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
