5228686-1 - TE Connectivity

Description: Body Features: Body Plating Material Nickel | Body Material VALOX | Configuration Features: Number of Coaxial Contacts 1 | Number of Positions 1 | PCB Mount Orientation Right Angle | Contact Features: RF Connector Center Contact Plating Thickness 1080 MICIN | RF Connector Center Contact Underplating Material Nickel | RF Connector Center Contact Material Brass | RF Connector Center Contact Plating Material Gold | Dimensions: Profile Height from PCB 15.88 MM | RF Connector Mated Outer Diameter (Approximate) 1

Download 5228686-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5228686-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

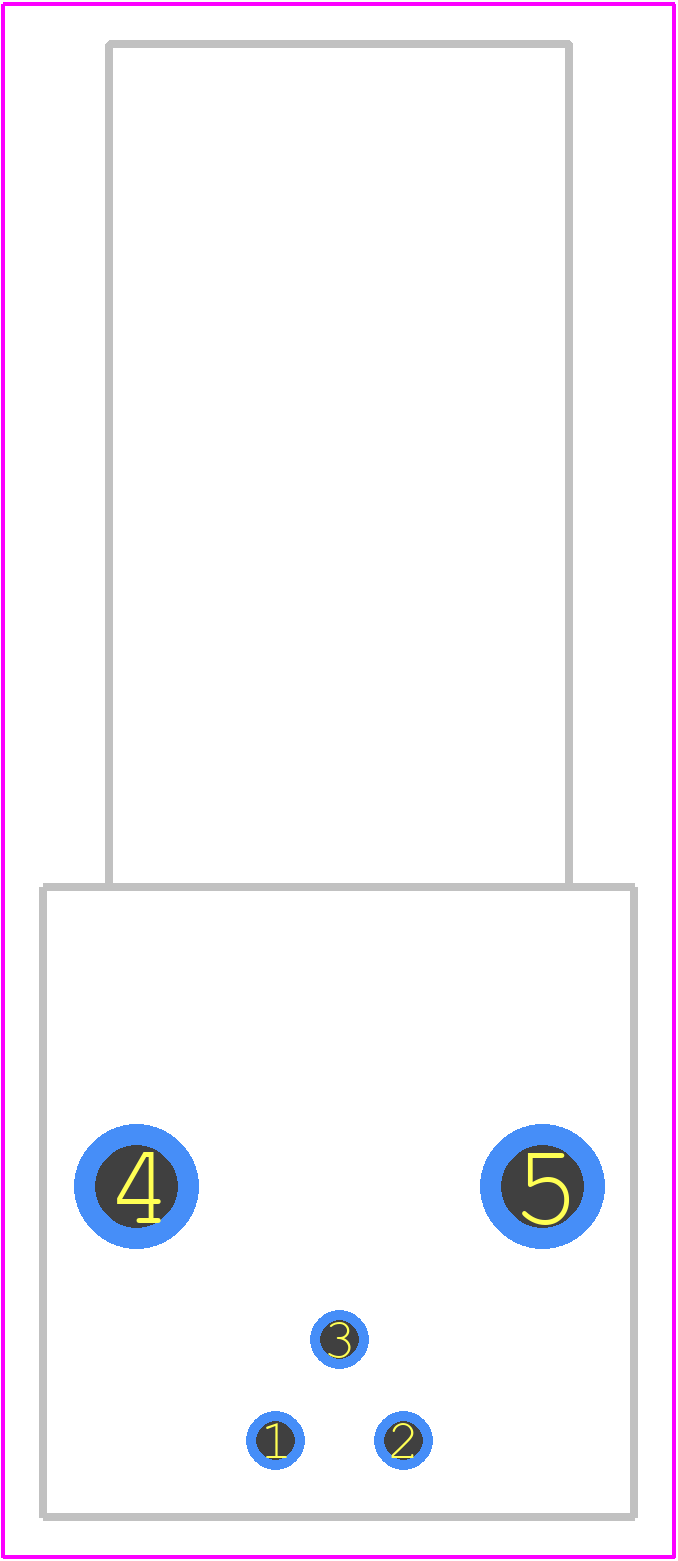

5228686-1 - TE Connectivity PCB footprint - Other - Other - 5228686-1
click to zoom
3D Models
5228686-1 - TE Connectivity - 3D model - Other - 5228686-1
click to zoom

5228686-1 Details

  • Manufacturer Part Number:

    5228686-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.625 inch

  • Body Depth:

    0.625 inch

  • Body Length:

    0.581 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Terminal Length:

    0.162 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2

5228686-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5228686-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5228686-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's recommended to follow TE Connectivity's PCB layout guidelines to ensure proper clearance, spacing, and thermal management. Consult their application notes and design guides for more information.
  • The 5228686-1 connector is designed to meet IP20 ingress protection standards, but it's essential to consult TE Connectivity's environmental testing data and application notes for specific guidance on using the connector in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5228686-1 Overview

Use the download button to access the 5228686-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52286, or try a keyword search, such as RF BNC Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
